Запчасти Case 590SM (09-09) - COUPLER, TOOL QUICK (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Manual Coupler

1шт.

1

191239A1

COUPLING

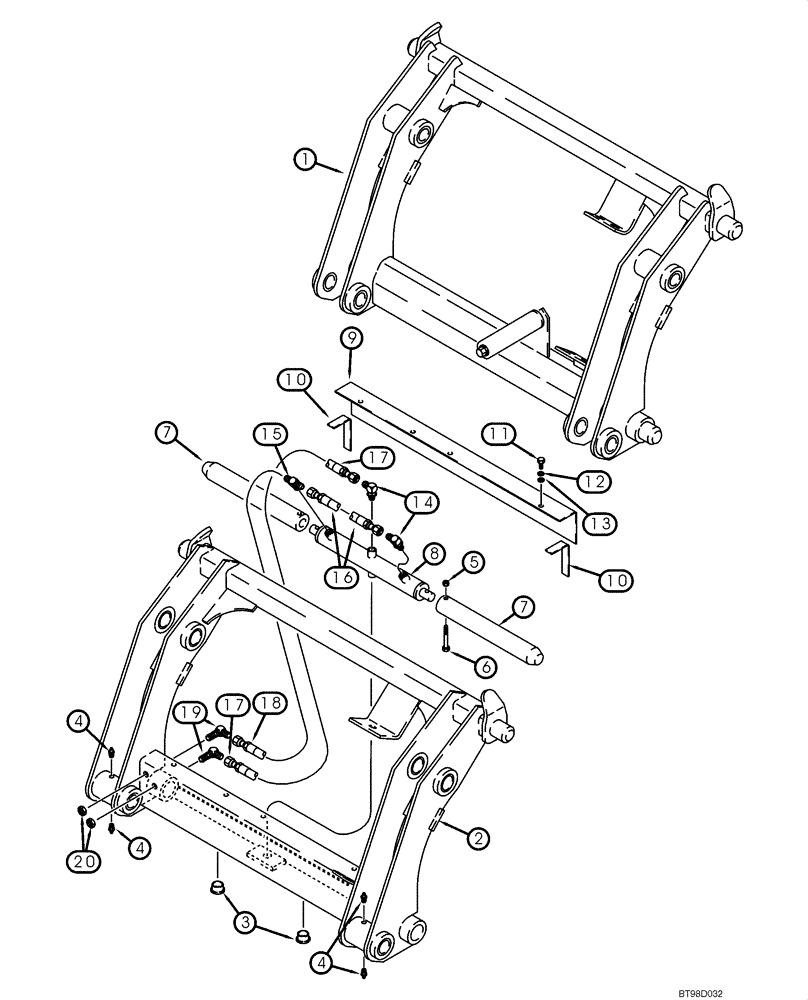

Loader; Complete; Component Parts Not Serviced Separately; Used With D121194 Bucket Position Pointer and 275939A1 Bucket Cylinder Link; See Figure 09-05; Ref 6, 13

1шт.

REF

INSTRUCTION

Hydraulic Coupler

1шт.

292969A2

COUPLING

Loader; Incl. Ref 2 - 35; With Auxiliary Hydraulics; For Complete Assembly; Order From Machinery Price List; Category III; For Hydraulic Tool Quick Coupler Hydraulics; See Figure 08-21

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

305497A1

PLUG,1.25" x 0.5"

1-1/4 ID x 1/2 in OD; Plastic

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

1-15/16 OD x 15 in lg

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double Acting; Component Parts Not Serviced Separately

1шт.

305499A1R

REMAN-HYD CYLINDER

590SM

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

305495A1

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Seal; Foam

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

492-11031

LOCK WASHER,5/16"

3шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006

2шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl; Incl. 237-6006

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

21

305508A1

DECAL KIT

Incl. Four Decals; Not Illustrated

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC 387mm (15-1/4") used to service couplers 292969A2 and 86982425

2шт.

22

84203107

HYDRAULIC HOSE,469.9mm L

HOSE, HYDRAULIC 469.9mm (18.5") used to service couplers 87602620 and 87602625

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

629 mm (24-3/4"); Not Illustrated

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

718 mm (28-1/4"); Not Illustrated

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

660 mm (26"); Not Illustrated

1шт.

26

307389A1

PIVOT

Not Illustrated

2шт.

27

137344A1

PLUG

Male Coupling; Not Illustrated

1шт.

28

137343A1

PLUG

Female Coupling; Not Illustrated

1шт.

29

123537A1

COUPLING, QUICK, FEM

Disconnect, Not Illustrated

1шт.

30

245423A1

FITTING

Not Illustrated

1шт.

31

126155A1

FITTING

1-1/16 blkhd fl x OR; Not Illustrated

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x bkhd fl; Not Illustrated

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

Not Illustrated

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

Not Illustrated

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal, Not Illustrated

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
