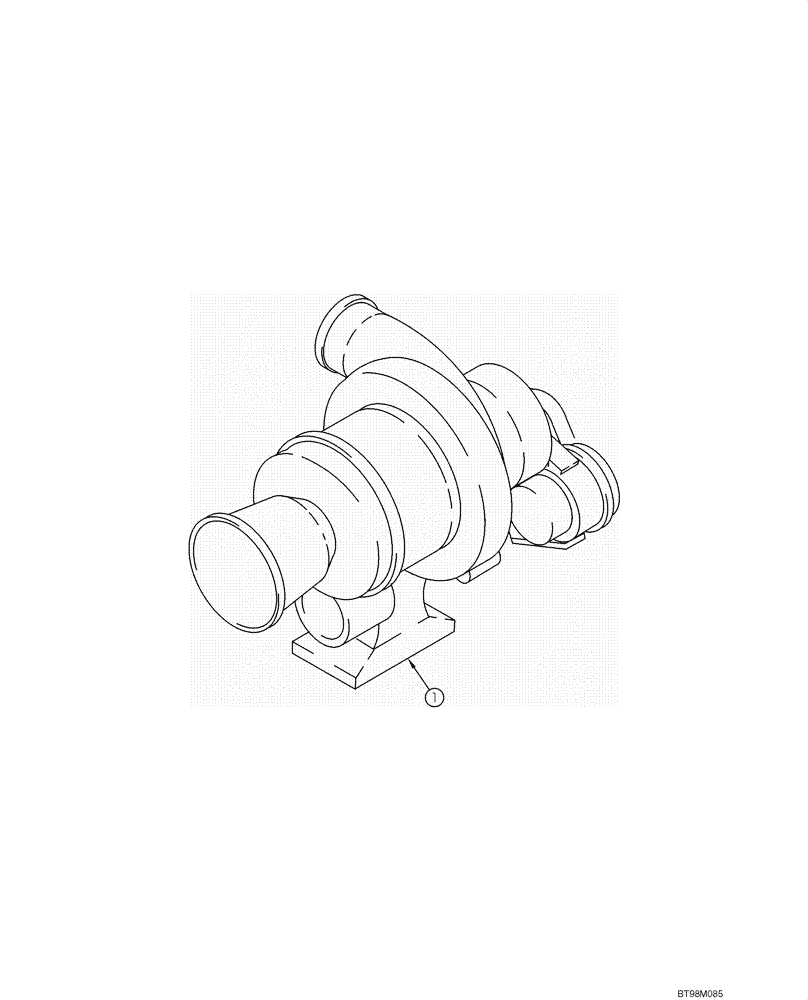

Запчасти Case 590SM (02-12) - TURBOCHARGER ASSY - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J806298

TURBOCHARGER

Kit, With Gaskets; Incl. 1 - 4; Repair Kit Including Wastegate Is Not Serviced by CNH. See a Cummins Distributor For Repair Kit Vendor Part Number 4031494

1шт.

JR806298

REMAN-TURBOCHARGER

Remanufactured Turbocharger, With Gaskets

1шт.

JC596586

CORE-TURBOCHARGER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing Assy, Center

1шт.

2

J932475

GASKET

Not Illustrated, See Figure 02-11

1шт.

3

J934638

GASKET

Not Illustrated, See Figure 02-11

1шт.

4

J591893

HOSE,4.50 mm ID x 150.00 mm

Not Illustrated

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Not Illustrated

2шт.

87497963

KIT

Wastegate Actuator, Not Illustrated

1шт.
