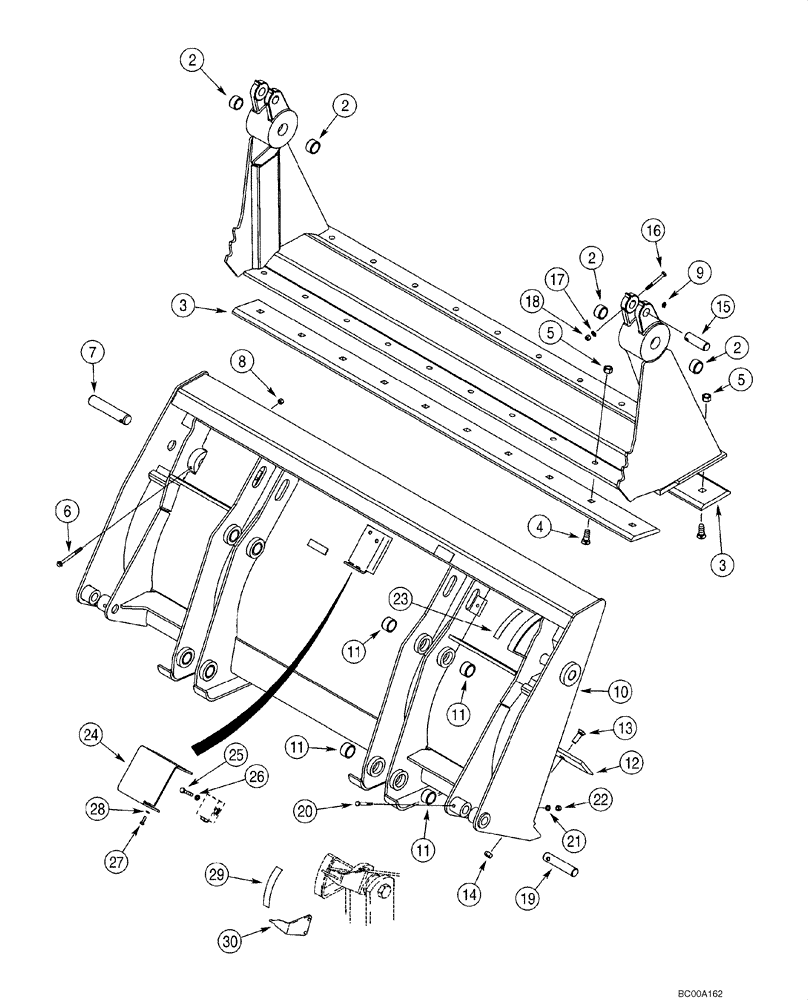

Запчасти Case 590SM (09-07) - BUCKET, LOADER CLAM (09) - CHASSIS/ATTACHMENTS

376526A3

BUCKET

2362 mm (93 in); Incl. 376287A2, 144210A1, 1 - 28; With Hydraulics; Also Figure 08-07, Ref 1 - 29; Order Through Parts Marketing

1шт.

376287A2

BUCKET, 2362 mm (93 in); Incl. 144210A1, Ref 1 - 14; Without Hydraulics; Order Through Parts Marketing

1шт.

144210A1

CLAMSHELL BUCKET

Incl Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Clam Assy

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

3

142301A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2362mm L

2шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

5

29-1012

NUT,3/4"-10, G8

20шт.

6

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

7

D51391

PIN,15mm OD x 74mm L

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

376285A2

BUCKET

Incl. Ref 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Blade Assy; Dozer

1шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

12

133542A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2359mm L

1шт.

13

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

14

29-1010

NUT,5/8"-11, G8

10шт.

15

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

16

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

20

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

321-1708

DECAL

1шт.

24

388848A1

GUARD

Pilot Operated Check Valve

1шт.

25

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

29

321-1707

DECAL

1шт.

30

250851A1

POINTER

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
