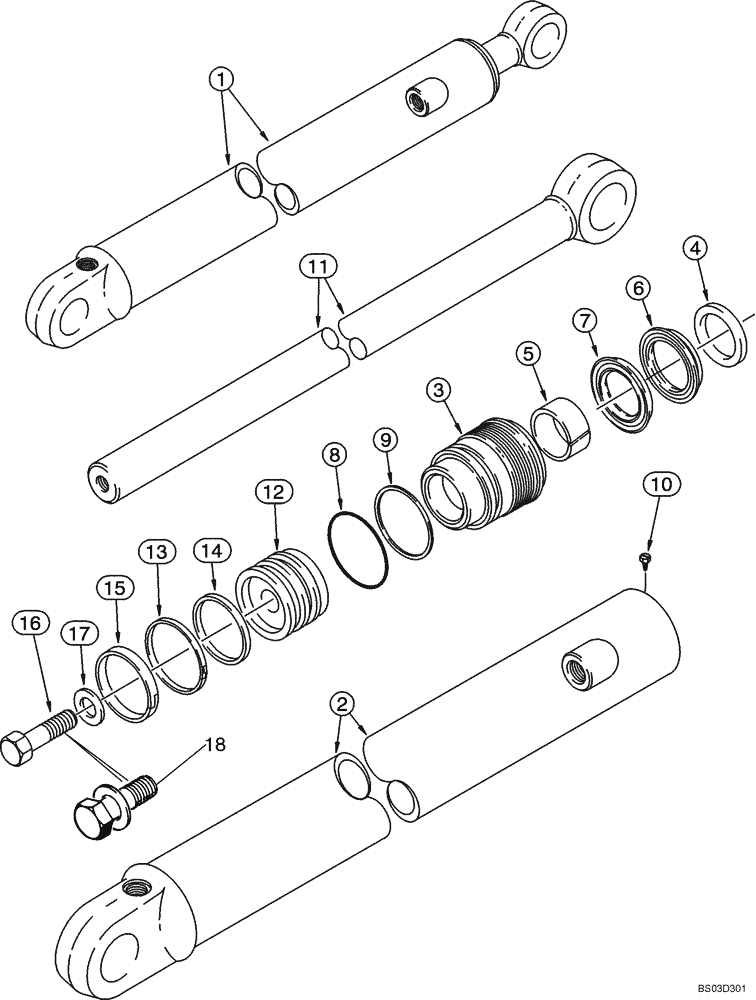

Запчасти Case 590SM (08-61) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER (08) - HYDRAULICS

1

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

76 ID x 1220 mm strk; Incl. Ref 2- 17; Also Incl. 1346076C1

1шт.

1346076C1

SPACER

7-1/2 in lg; Located Between Gland and Piston

1шт.

2

1340854C2

TUBE,76mm Bore Dia

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 3 - 9

1шт.

3

297281A1

GLAND

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Incl Ref 6, 7; Not Serviced Separately; Order 1543267C1 Seal Kit

1шт.

6

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543267C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543267C1 Seal Kit

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

1346077C1

ROD

44 mm (1-3/4 in) dia

1шт.

12

G107277

PISTON

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

No Longer Used; Order 86982444, Ref 18

1шт.

17

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

No Longer Used; Order 86982444 Ref 18

1шт.

18

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1,5 x 3,5 lg; Incl. Washer; Replaces Ref 16 and 17

1шт.

1543267C1

SEAL KIT

Incl Ref 4 - 9, 13 - 15

1шт.
