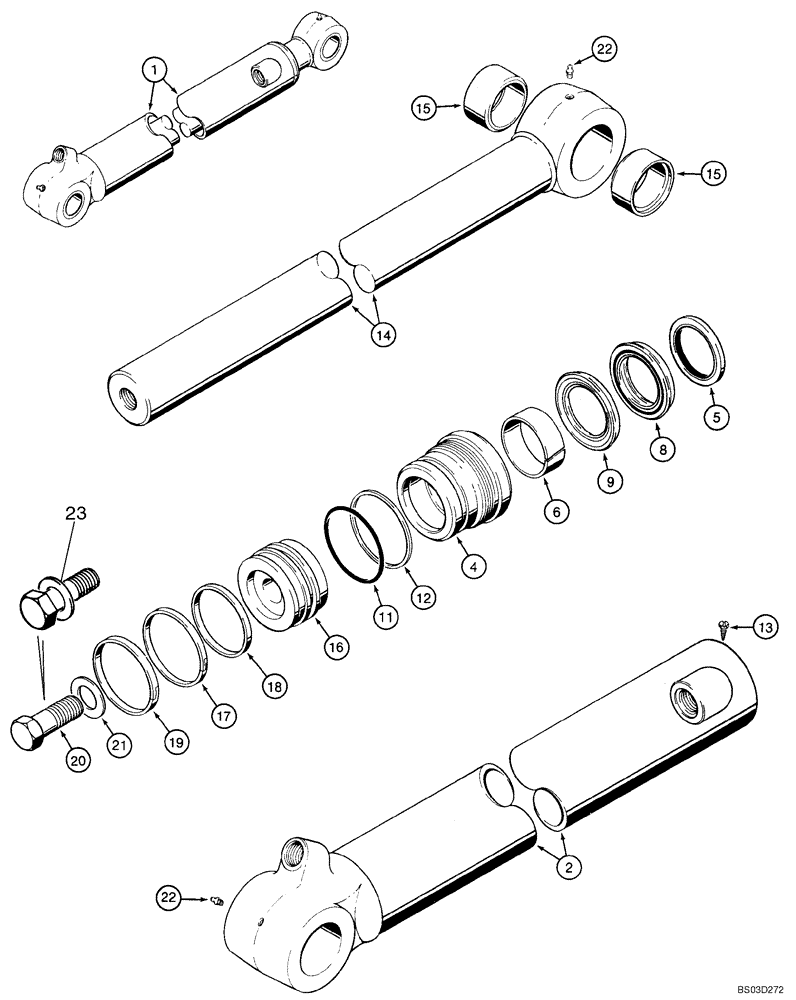

Запчасти Case 590SM (08-60) - CYLINDER ASSY - BACKHOE BUCKET (08) - HYDRAULICS

1

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

95 ID x 872 mm strk; Incl. Ref 2- 22

1шт.

1

296434A1R

REMAN-HYD CYLINDER

590SM

1шт.

1

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

296435A1

BARREL,95.25 mm ID, 1086.9 mm Length

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 4 - 12

1шт.

4

296445A1

GLAND

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

1шт.

6

252790A1

BEARING,2.75mm ID x 69.85mm OD x 25.15 W

1шт.

1542880C1

PACKAGE

Incl. Ref 8, 9; Not Serviced Separately; Order 297895A1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 297895A1 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 297895A1 Seal Kit

1шт.

11

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

12

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

296439A1

PISTON ROD

70 mm (2-3/4 in) dia; Incl. Ref 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2шт.

16

296443A1

PISTON

1шт.

17

1340762C1

SEAL,92mm ID x 96.5mm OD x 6.9mm Thk

1шт.

18

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

1шт.

19

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

1шт.

20

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

No Longer Used; Order 86982442 Ref 23

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

No Longer Used; Order 86982442, Ref 23

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

23

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1,25 x 3,25 lg; Incl. Washer; Replaces Ref 20 and 21

1шт.

297895A1

SEAL KIT

Seal; Incl. Ref 4 - 12, 17 - 19

1шт.
