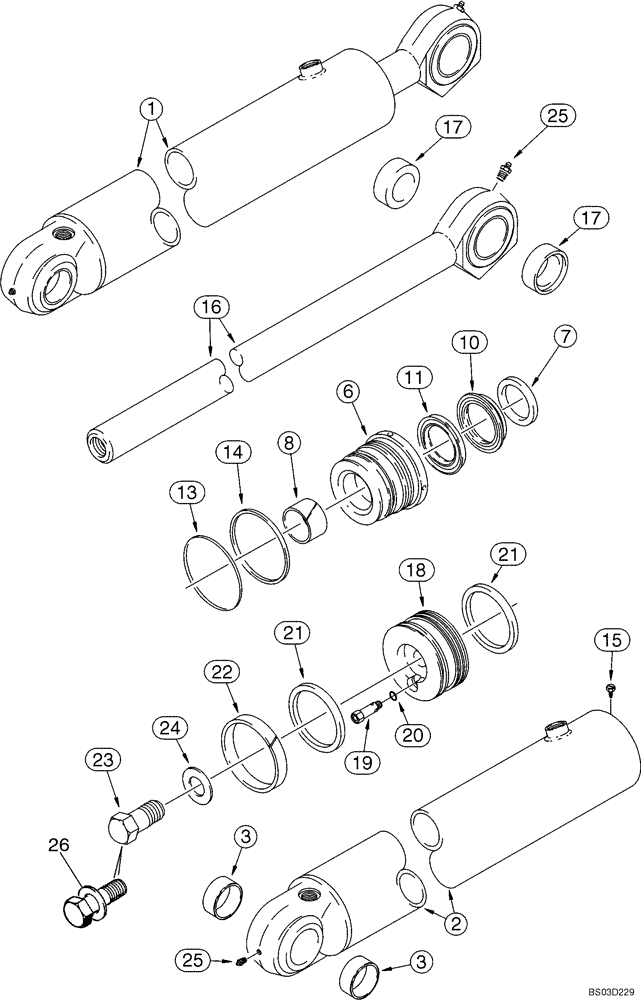

Запчасти Case 590SM (08-58) - CYLINDER ASSY - BACKHOE BOOM (08) - HYDRAULICS

1

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

140 ID x 976 mm strk; Incl. Ref 2- 25

1шт.

1

175785A1R

REMAN-HYD CYLINDER

590SM

1шт.

1

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

175787A1

TUBE,139.65mm Bore Dia

Incl. Ref 3

1шт.

3

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 6 - 14

1шт.

6

1542982C2

CYLINDER END CAP

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Ref 10, 11; Not Serviced Separately; Order 1980412C2 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1980412C2 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1980412C2 Seal Kit

1шт.

13

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

5-1/2 ID x 1/8 in

1шт.

14

G107971

RING

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

133570A1

ROD

63 mm (2-1/2 in) dia; Incl. Ref 17

1шт.

17

D151062

BUSHING,80.19mm ID x 90mm OD x 30mm L

2шт.

18

1346497C2

PISTON,139.7mm Bore, 63.5mm Rod, 70.95mm W

1шт.

19

1958028C1

VALVE

Cartridge; Component Parts Not Serviced Separately; Incl. Ref 20

1шт.

21

1980401C1

SEAL

2шт.

22

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

1шт.

23

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

1-3/4 NF x 3-1/2; 8; No Longer Used; Order 86982443, Ref 26

1шт.

24

G32559

WASHER

No Longer Used; Order 86982443 Ref 26

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

26

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1-3/8 x 3-1/2 lg; Incl. Washer; Replaces Ref 23 and 24

1шт.

1980412C2

SEAL KIT

Seal; Incl. Ref 7 - 14, 21, 22

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
