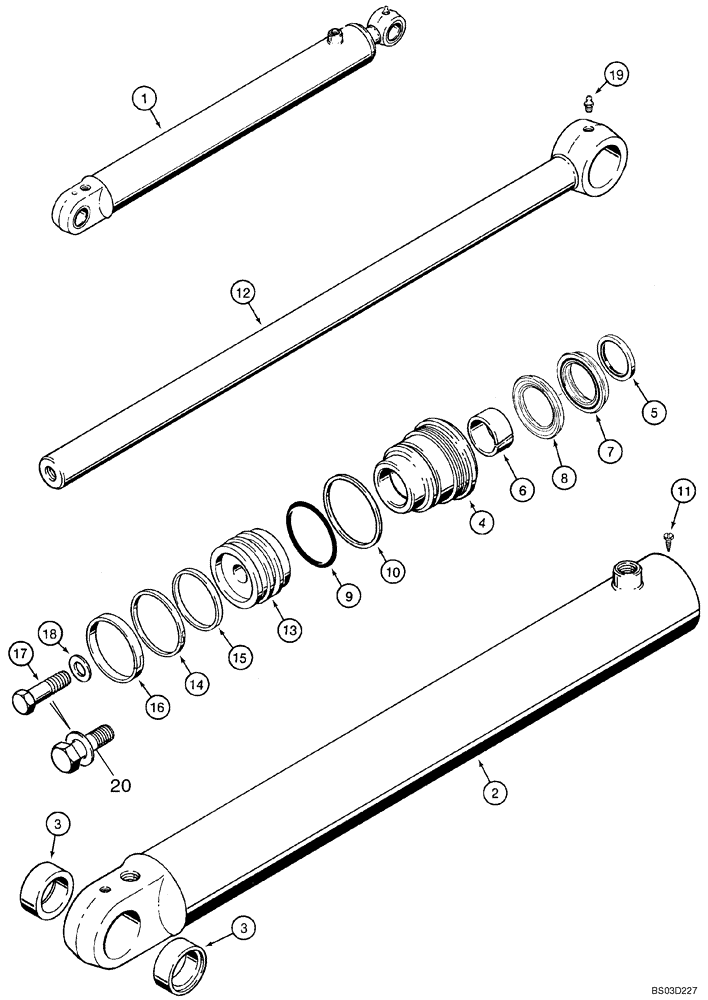

Запчасти Case 590SM (08-53) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

1

133936A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 766mm Stroke

89 ID x 766 mm strk; Loader Lift; Incl. Ref 2- 19

2шт.

2

133937A1

TUBE

Incl. Ref 3

1шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 4 - 10

1шт.

4

1971707C2

CYLINDER END CAP

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Incl Ref 7, 8; Not Serviced Separately; Order 1543266C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543266C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543266C1 Seal Kit

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

Backup Ring

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

13

135259A1

PISTON

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

No Longer Used; Order 86982437 Ref 20

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

No Longer Used; Order 86982437 Ref 20

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1,0 x 2,5 lg; Incl. Washer; Replaces Ref 17 and 18

1шт.

1543266C1

SEAL KIT

Seal; Incl. Ref 5 - 10, 14 - 16

1шт.
