Запчасти Case 590SM (08-52) - FILTER ASSY, OIL (08) - HYDRAULICS

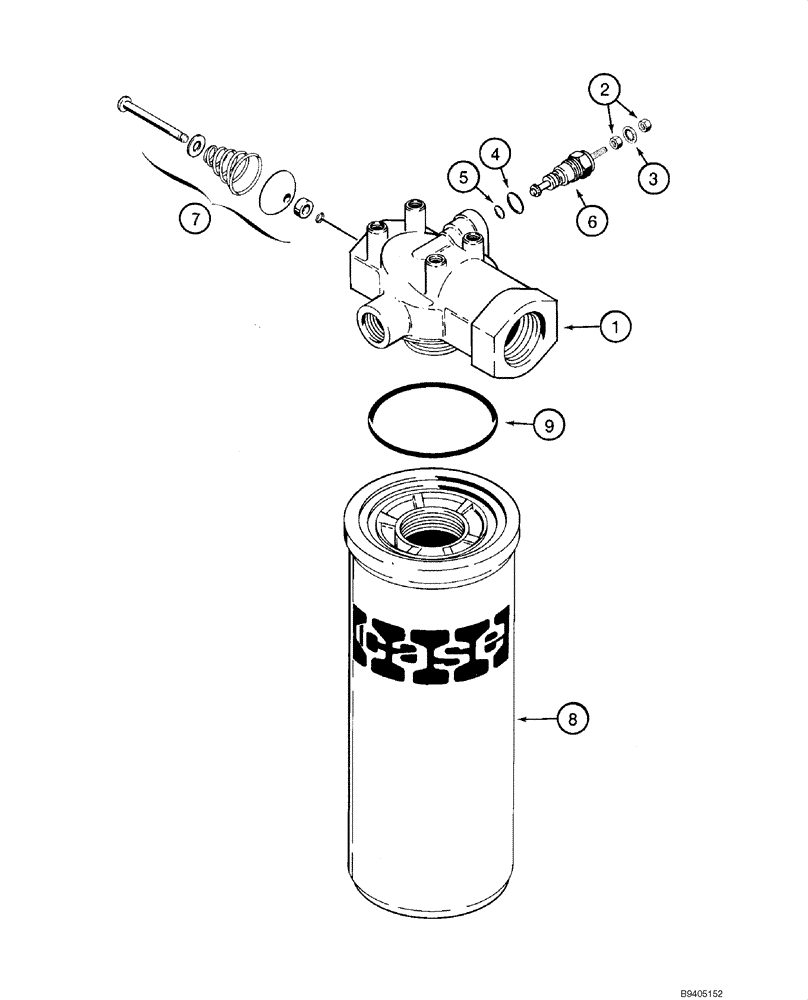

Схема запчастей Case 590SM - (08-52) - FILTER ASSY, OIL (08) - HYDRAULICS
5
6
2
7
1
9
8
4
3

Артикул

Название

Примечание

Количество

181001A1

FILTER ASSY

Hydraulic Oil Filter; Incl. Ref 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

N6755

PRESSURE SWITCH

Restriction; Incl. N6941, Ref 6

1шт.

N6941

KIT

Restriction Indicator Repair; Incl. Ref 2 - 5; Order Ref 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

D149921

HYDRAULIC OIL FILTER

Incl. Ref 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

Выбрано товаров: 13
