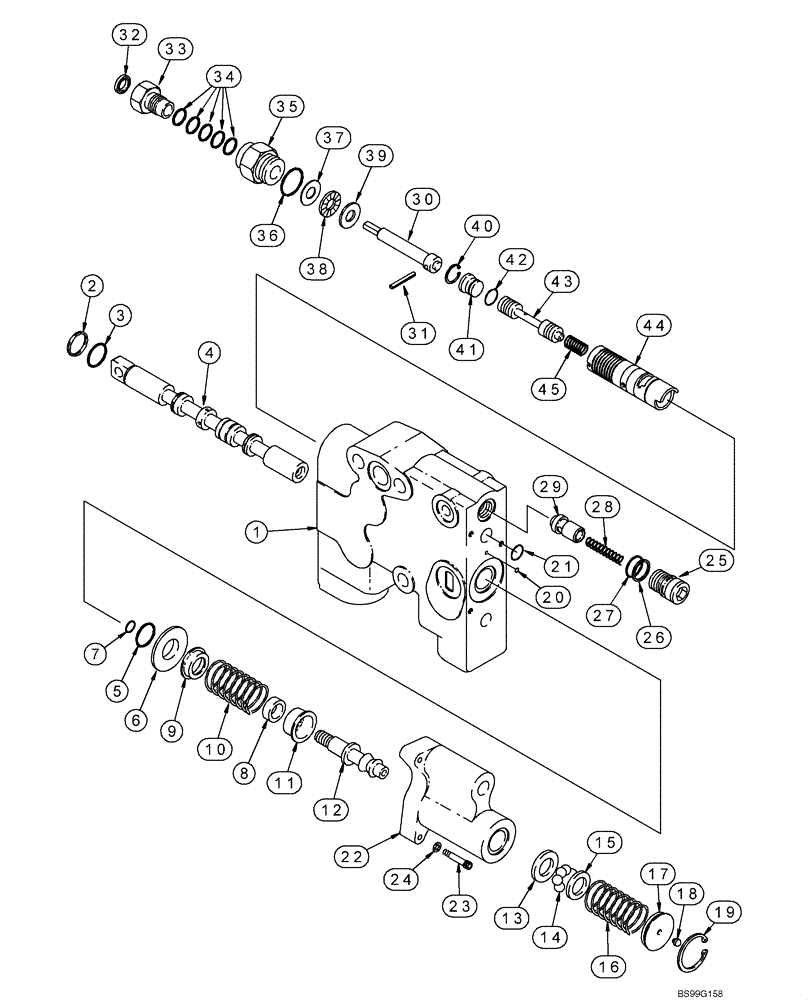

Запчасти Case 590SM (08-49) - VALVE SECTION - HAND HELD AUXILIARY (08) - HYDRAULICS

131197A1

HYD VALVE SECTION

Hand Held Auxiliary Hydraulics; Incl. Ref 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

1шт.

3

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

131196A1

SPOOL

Incl. Ref 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

Spool

1шт.

5

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

6

G108630

HOLDER

1шт.

7

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

8

1980085C1

SPACER

1шт.

9

G108914

SPRING CUP

1шт.

10

130932A1

SPRING

1шт.

11

G108913

SPRING CUP

1шт.

12

307208A1

STUD

1шт.

13

G108912

WASHER

1шт.

14

211-1007

BALL,7/32" Dia

Gr 24, CRS

8шт.

15

G108911

WASHER

1шт.

16

130919A1

SPRING

1шт.

17

321361A1

RETAINER

Incl. 321360A1, G107780

1шт.

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

18

G107780

VALVE, CHECK

1шт.

19

100-21118

SNAP RING,1.188", Int, #118

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

22

129391A1

CAP

1шт.

23

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

24

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

3шт.

1542563C1

KIT

Incl. Ref 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

Plug

1шт.

26

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

28

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

29

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

1343791C2

SET OF PARTS

Flow Control; Incl. Ref 30 - 39; Order Ref 30 - 39

1шт.

30

1980302C2

ROD

Incl. Ref 31

1шт.

31

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1/8 x 3/8 in

1шт.

32

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

33

1980227C1

NUT

1шт.

34

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 ID x 3/32

5шт.

35

1980226C1

PLUG

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

38

F13537

THRUST BEARING

1шт.

39

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

1994677C1

SLEEVE ASSY

Incl. Ref 40 - 44

1шт.

40

100-2156

SNAP RING,0.562", Int, #56

1шт.

41

1346312C2

PLUG

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

43

NSS

NOT SOLD SEPARAT

Spool

1шт.

44

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

45

1957887C1

SPRING

1шт.
