Запчасти Case 590SM (08-47) - VALVE SECTION - OPTIONS, AUXILIARY HYDRAULICS (08) - HYDRAULICS

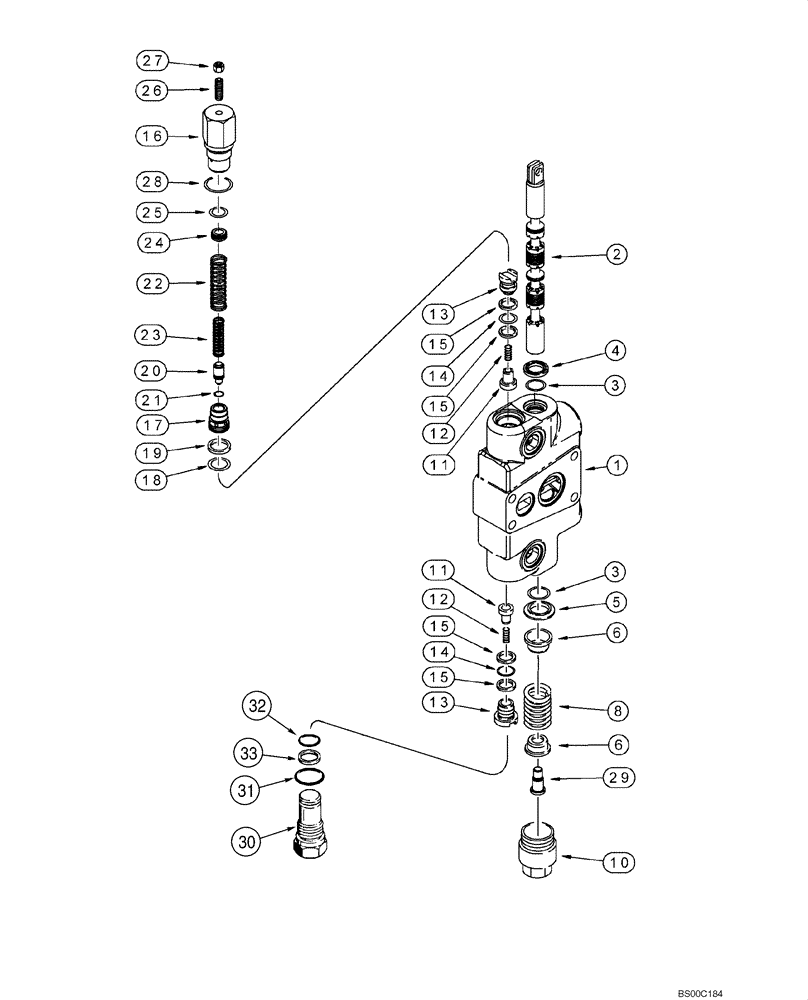

Схема запчастей Case 590SM - (08-47) - VALVE SECTION - OPTIONS, AUXILIARY HYDRAULICS (08) - HYDRAULICS
13
4
13
29
15
32
20
28
15
3
12
15
23
16
30
24
6
11
3
21
12
2
14
26
6
11
27
19
31
17
18
1
10
33
5
8
14
15
22
25

Артикул

Название

Примечание

Количество

396997A1

HYD VALVE SECTION

Options; Auxiliary Hydraulics; Incl. Ref 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

8

1994596C1

SPRING

Purple

1шт.

10

G33080

CAP

1шт.

345-601

LOCTITE

No. 203; 1 ml

1шт.

1346219C3

VALVE, CHECK

Load Check Valve; Incl. Ref 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

13

1343708C1

PLUG

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

G109391

VALVE

3200 psi; Circuit Relief Valve; Incl. Ref 16 - 28; Used In Production; Order G109449 Circuit Relief Valve Kit For Service

1шт.

16

NSS

NOT SOLD SEPARAT

Housing

1шт.

17

NSS

NOT SOLD SEPARAT

Seat

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

G109449

KIT

Service For G109391 Circuit Relief Valve; Kit Incl. Instruction Sheet and G109447 Circuit Relief Valve; Which Is The Same As G109391 Except With A Different Pressure Setting

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

20

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Piston

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

26

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Oval pt

1шт.

27

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

29

G106409

SEAT

Use With Loctite 345-601

1шт.

G33122

PLUG,ORB

Relief; Incl. Ref 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

Plug

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

33

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

1346105C2

SEAL KIT

Seal; Incl. Ref 3, 4, 14, 15, 18, 19, 28, 31 - 33

1шт.

Выбрано товаров: 38
