Артикул
Название
Примечание
Количество

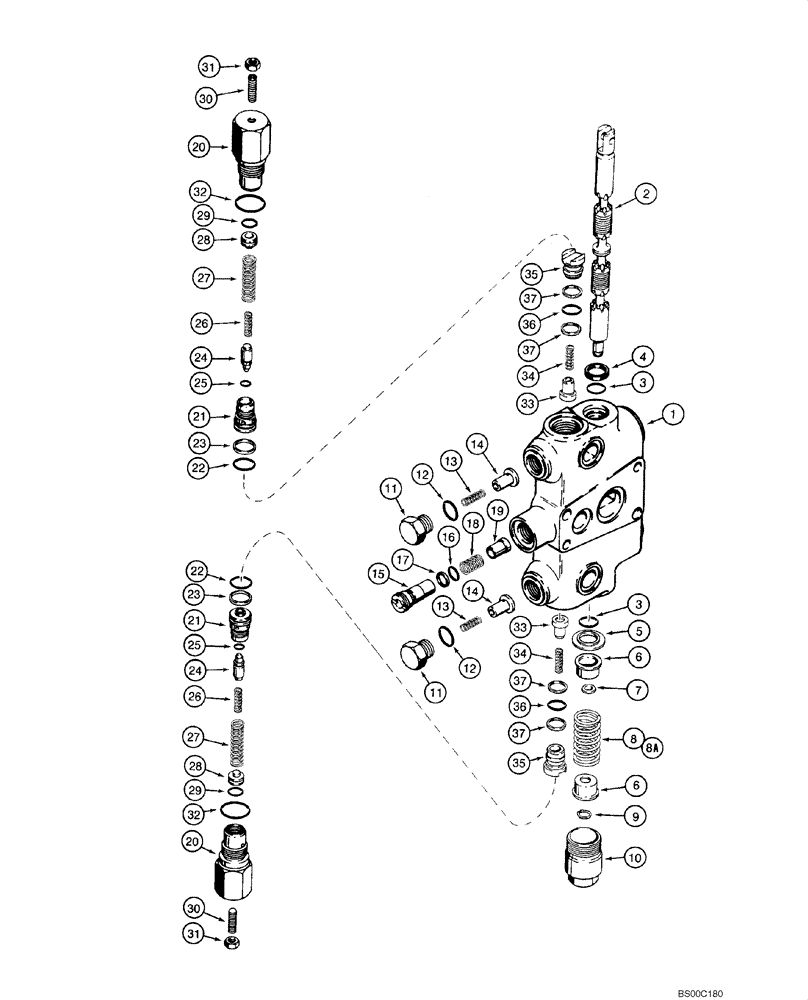

241088A5
HYD VALVE SECTION
Swing; Foot Swing Control Valve; Incl. Ref 1 - 8, 9 - 37
1шт.
243145A5
HYD VALVE SECTION
Swing; Hand Swing Control Valve; Incl. Ref 1 - 7, 8A - 37
1шт.
1
NSS
NOT SOLD SEPARAT
Housing
1шт.
2
NSS
NOT SOLD SEPARAT
Spool
1шт.
4
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
1шт.
6
G33075
RETAINER,12.2mm ID, 27.9mm OD
2шт.
7
332753A1
SPACER
1шт.
8
1986722C1
SPRING
2-1/4; 241088A5 Foot Swing Section, Black
1шт.
8a
1994596C1
SPRING
243145A5 Hand Swing Section, Purple
1шт.
9
100-1647
SNAP RING,#47, Ext
1шт.
10
G33080
CAP
1шт.
345-601
LOCTITE
No. 203; 1 ml
1шт.
1346221C3
VALVE
Anticavitation Valve; Incl. Ref 11 - 14
2шт.
11
332473A1
PLUG,Hex, 7/8" - 14
1шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss Seal
1шт.
13
G34458
SPRING,Compression, 5.08mm OD x 27.56mm L
1шт.
14
G34938
VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L
1шт.
1346222C1
VALVE
Incl. Ref 15 - 17
1шт.
15
G109964
HOUSING
1шт.
16
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
17
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
18
G109971
SPRING
1шт.
19
1978068C1
VALVE POPPET
1шт.
G107786
VALVE, PRESSURE RELI
EF Circuit Relief Valve; Incl. Ref 20 - 32; Used In Production; Order G109449 Circuit Relief Valve Kit For Service
2шт.
20
NSS
NOT SOLD SEPARAT
Housing
1шт.
21
NSS
NOT SOLD SEPARAT
Seat
1шт.
KIT
Service For G107786 Circuit Relief Valve; Kit Includes Instruction Sheet and G109447 Circuit Relief Valve, Which Is The Same As G107786 Except With A Different Pressure Setting
1шт.
22
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
23
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
1шт.
24
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
25
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
26
NSS
NOT SOLD SEPARAT
Spring
1шт.
27
NSS
NOT SOLD SEPARAT
Spring
1шт.
28
NSS
NOT SOLD SEPARAT
Piston
1шт.
29
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
30
484-43116
SET SCREW,Hex Soc, 5/16"-24 x 1"
Oval pt
1шт.
31
425-155
JAM NUT,Jam, 5/16"-24, G5
1шт.
32
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss Seal
1шт.
33
1343777C1
VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L
1шт.
34
1346175C1
SPRING,Compression, 6.6mm OD x 21.93mm L
1шт.
35
1343708C1
PLUG
1шт.
36
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal
1шт.
37
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
1шт.
SEAL KIT
Seal; Incl. Ref 3, 4, 12, 16, 17, 22, 23, 32, 36, 37; Plus Additional O-Rings Not Required For This Application
1шт.
Выбрано товаров: 47
