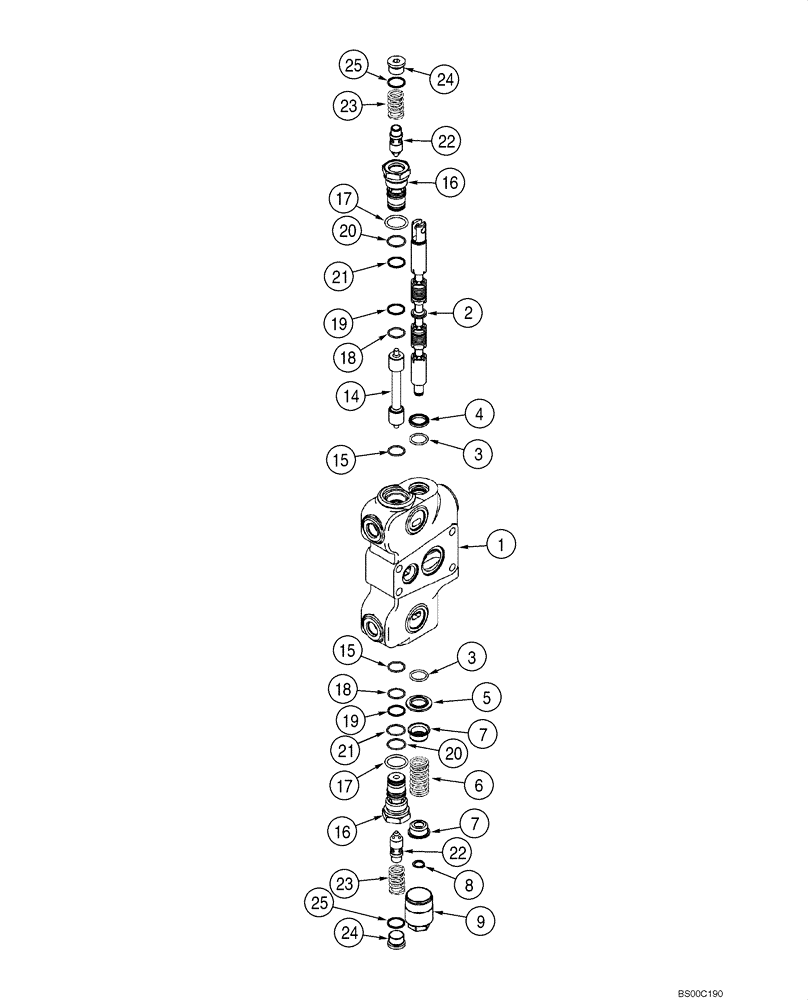

Запчасти Case 590SM (08-42) - VALVE SECTION - BACKHOE STABILIZER (08) - HYDRAULICS

316416A1

VALVE BLOCK

Stabilizer; Left-Hand and Right-Hand; Incl. Ref 1 - 25

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

1986722C1

SPRING

2-1/4, Black

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

8

100-1647

SNAP RING,#47, Ext

1шт.

9

G33080

CAP

1шт.

345-601

LOCTITE

No. 203; 1 ml

1шт.

14

316412A1

PISTON

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

G109627

PLUG

Lock Check; Incl. Ref 16 - 25

2шт.

16

NSS

NOT SOLD SEPARAT

Seat

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

20

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

21

G110468

RING

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

23

G109630

SPRING

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.
