Запчасти Case 590SM (08-35) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (08) - HYDRAULICS

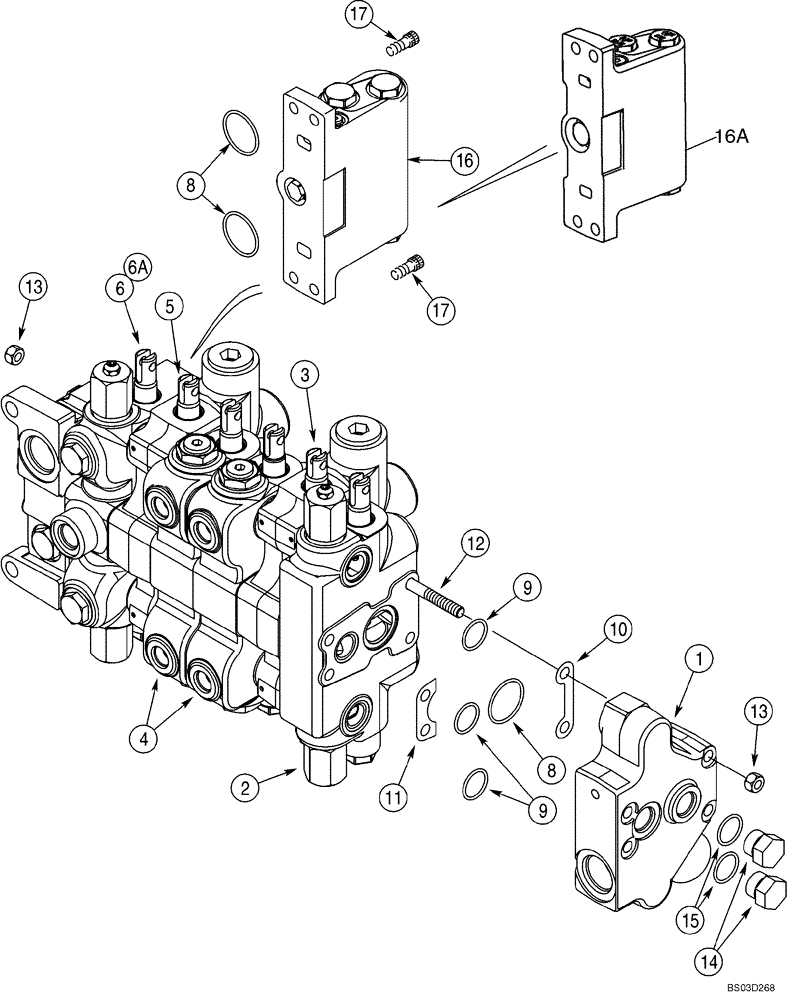

Схема запчастей Case 590SM - (08-35) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (08) - HYDRAULICS
8
2
12
5
9
15
9
14
4
1
13
17
8
6a
10
6
17
16a
16
3
13
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Models Without Extendable Dipper and Without Auxiliary Hydraulics

1шт.

324993A3

VALVE, CONTROL

Foot Swing; Incl. Ref 1 - 6, 7 - 17; If Used

1шт.

353814A3

VALVE, CONTROL

Hand Swing; Incl. Ref 1 - 5, 6A - 17; If Used

1шт.

1

400454A1

HYD VALVE SECTION

Outlet; See Figure 08-39

1шт.

2

396919A1

HYD VALVE SECTION

Bucket; See Figure 08-40

1шт.

3

375783A2

HYD VALVE SECTION

Dipper; See Figure 08-41

1шт.

4

316416A1

VALVE BLOCK

Stabilizer; Left-Hand and Right-Hand; See Figure 08-42

2шт.

5

375782A2

HYD VALVE SECTION

Boom; See Figure 08-43

1шт.

5

375782A2R

REMAN-HYD VALVE

Reman Boom; See Figure 08-43

1шт.

5

375782A2C

CORE-VALVE HYD

Core Return Number

1шт.

6

241088A5

HYD VALVE SECTION

Swing; Foot Swing Control Valve; See Figure 08-44

1шт.

6b

243145A5

HYD VALVE SECTION

Swing; Hand Swing Control Valve; See Figure 08-44

1шт.

7

1542829C1

HYD VALVE SECTION

Inlet; See Figure 08-39

1шт.

8

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

9шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

21шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

7шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

7шт.

12

G108900

STUD

3/8 x 16-15/16 in

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

16

387627A1

VALVE, CUSHION

Swing; See Figure 08-45; No Longer Available; Order 387627A2, Ref 16A

1шт.

16a

387627A2

VALVE, CUSHION

Swing; See Figure 08-45

1шт.

17

863-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30; 12.9

4шт.

1346107C2

SEAL KIT

Seal; Incl. Ref 8, 9; Plus Additional O-Rings Not Required For This Application; No Longer Used

1шт.

437754A1

SEAL KIT

Incl. 8, 9; Plus Additional O-Rings Not Required For This Application

1шт.

Выбрано товаров: 26
