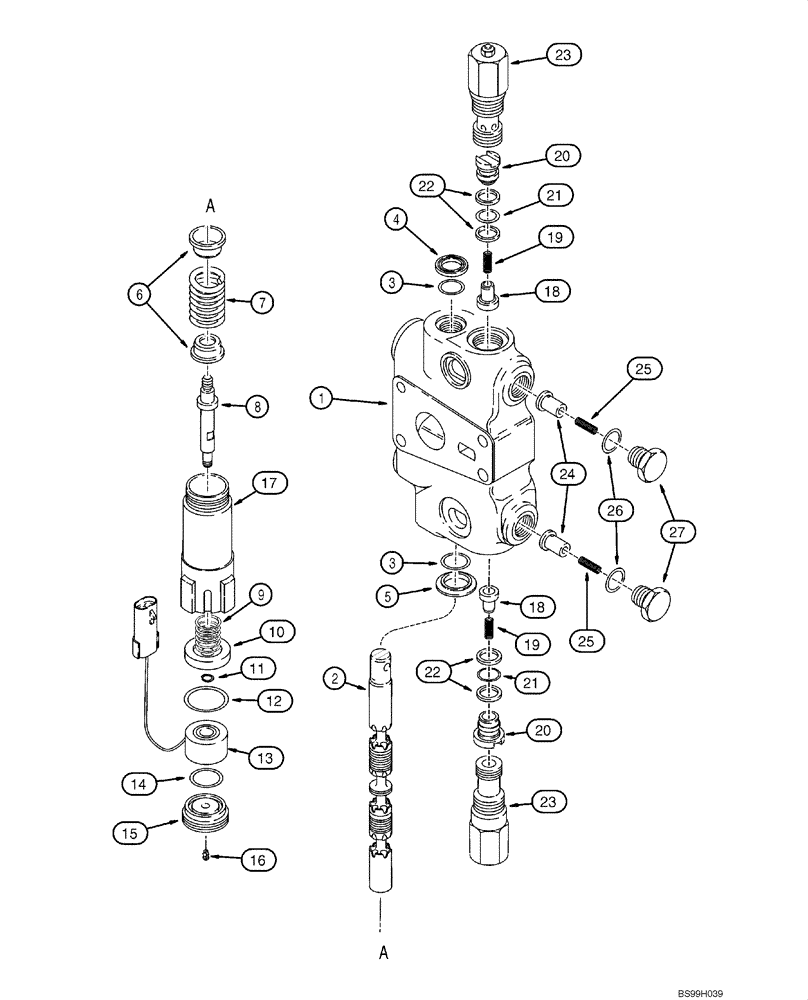

Запчасти Case 590SM (08-30) - VALVE SECTION - LOADER BUCKET (08) - HYDRAULICS

328443A1

VALVE SECTION

Bucket; With Magnetic Detent and Circuit Relief Valve; Incl. Ref 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

7

302326A1

SPRING,Compression, 28.067mm OD x 72.41mm L

1шт.

8

118318A1

TAPPET

Replaces 307214A1 Shaft Used In Production

1шт.

9

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

1шт.

10

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

1шт.

11

100-1125

SNAP RING,#25, Ext

1шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

13

120148A3

ELECTROMAGNET

1шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

1346105C2

SEAL KIT

Seal; Incl. Ref 3, 4, 21, 22; Plus Additional O-Rings Not Required For This Application

1шт.

328443A1

VALVE SECTION

Bucket; With Magnetic Detent and Circuit Relief Valve; Incl. Ref 1 - 27

1шт.

15

122330A1

PLUG,9/16" - 18

Magnetic Detent

1шт.

16

G107780

VALVE, CHECK

1шт.

17

113787A3

BODY

1шт.

1346219C3

VALVE, CHECK

Load Check Valve; Incl. Ref 18 - 22

2шт.

18

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin With Orifice

1шт.

19

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

20

1343708C1

PLUG

1шт.

21

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

22

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

1346105C2

SEAL KIT

Seal; Incl. Ref 3, 4, 21, 22; Plus Additional O-Rings Not Required For This Application

1шт.

328443A1

VALVE SECTION

Bucket; With Magnetic Detent and Circuit Relief Valve; Incl. Ref 1 - 27

1шт.

23

G109391

VALVE

3200 psi; Circuit Relief Valve; Used In Production; See Figure 08-34; Order G109449 Circuit Relief Valve Kit For Service, See Figure 08-34

2шт.

1346221C3

VALVE

Anticavitation Valve; Incl. Ref 24 - 27

2шт.

24

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

1шт.

25

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

332473A1

PLUG,Hex, 7/8" - 14

1шт.
