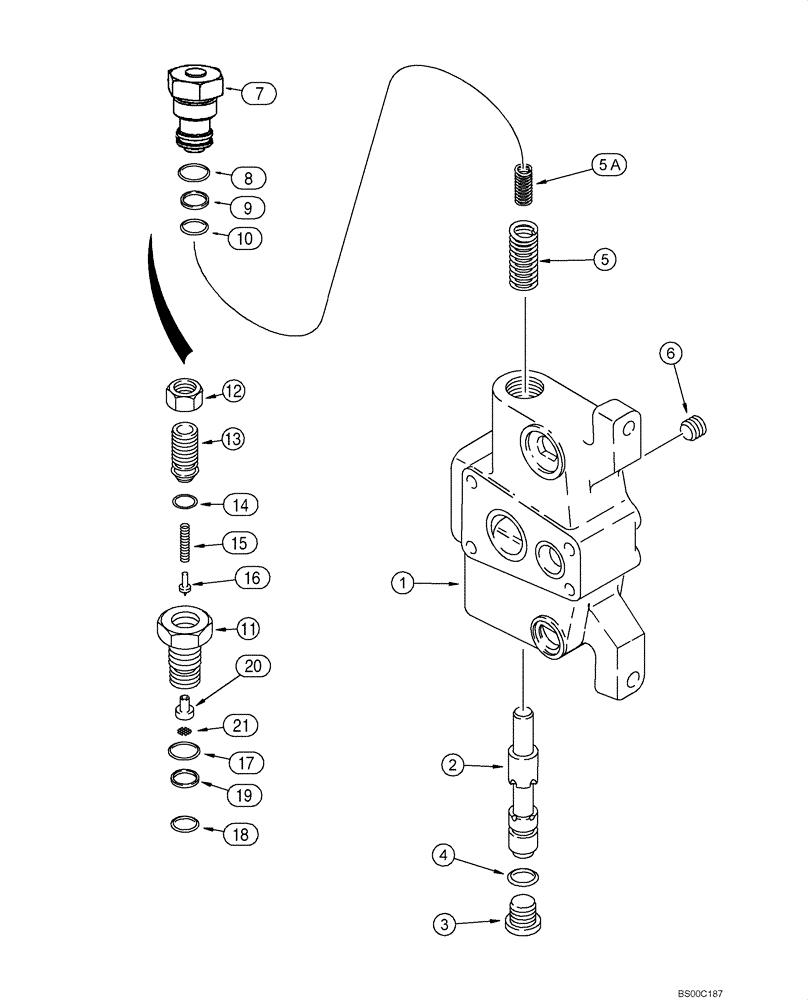

Запчасти Case 590SM (08-29) - VALVE - SECTION INLET (08) - HYDRAULICS

364148A1

HYD VALVE SECTION

Inlet; With Pilot Relief Plug; Incl. Ref 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

86625138

PLUG,7/18" - 14

Includes Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

5

122140A1

SPRING,Compression, 21mm OD x 55.18mm L

1шт.

5a

122141A1

SPRING,Compression, 12.75mm OD x 50.82mm L

Inner

1шт.

6

114903A1

PLUG

Steering Port

1шт.

380691A1

PLUG,ORB

Pilot Relief; Incl. Ref 7 - 10

1шт.

7

380678A1

PLUG,Hex, 1/16" - 12

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

9

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

130060A2

PILOT VALVE

EF Pilot Relief Valve; With Screen Filter; Used In Place Of 380691A1 Plug On Models With Hand Held Auxiliary Hydraulics Or Hydraulic Backhoe Bucket Coupler; Incl. Ref 11 - 21

1шт.

11

G108866

HOUSING,1-1/16" - 12

1шт.

12

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

13

G108867

PLUG

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

15

130059A1

SPRING

1шт.

16

G108556

VALVE POPPET

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

20

196095A1

SEAT

1шт.

21

196096A1

SCREEN

1шт.
