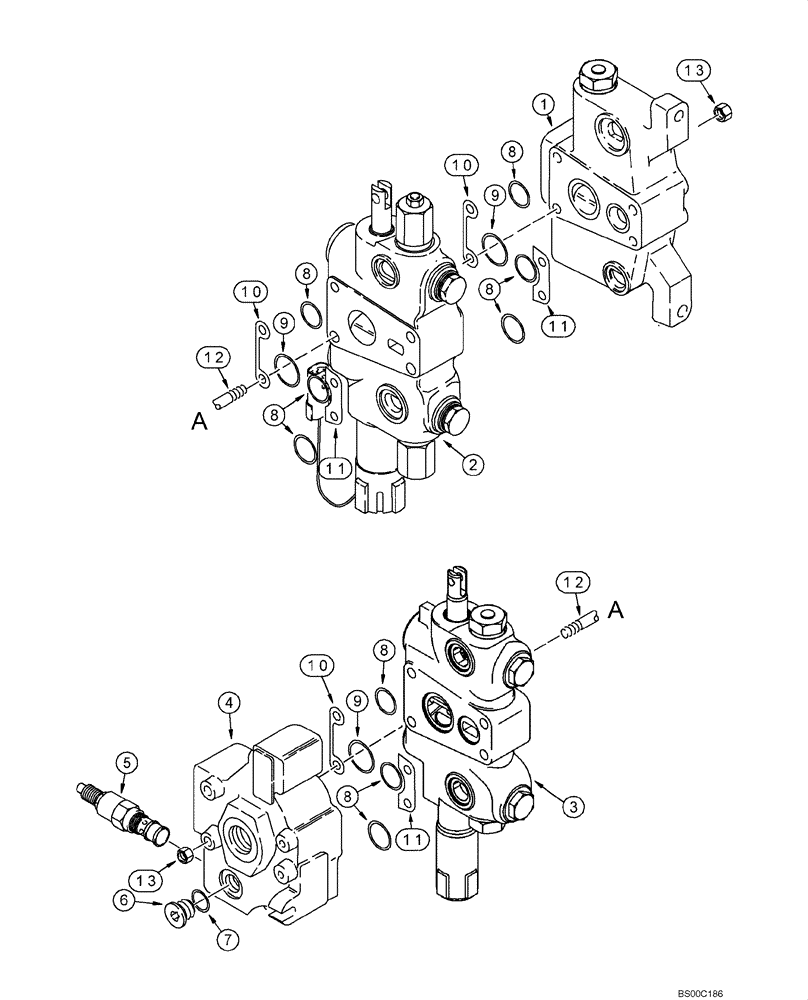

Запчасти Case 590SM (08-27) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (08) - HYDRAULICS

358236A1

VALVE

Incl. Ref 1 - 13

1шт.

1

364148A1

HYD VALVE SECTION

Inlet; With Pilot Relief Plug; See Figure 08-29

1шт.

2

328443A1

VALVE SECTION

Bucket; With Magnetic Detent and Circuit Relief Valve; See Figure 08-30

1шт.

3

357817A1

VALVE BLOCK

Lift; With Manual Detent; See Figure 08-31

1шт.

4

132004A2

HYD VALVE SECTION

Outlet; See Figure 08-32

1шт.

5

129842A2

VALVE, PRESSURE RELI

EF Component Parts Not Serviced Separately; For Service Of External Seals, Order G110098

1шт.

6

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 7; Diagnostic Port

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss seal

1шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

9шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

3шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

3шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

3шт.

12

G108870

STUD,246.2mm L

3/8 x 9-3/4 in

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

1346108C2

SEAL KIT

Seal; Incl. Ref 8, 9; Plus Additional O-Rings Not Required For This Application

1шт.
