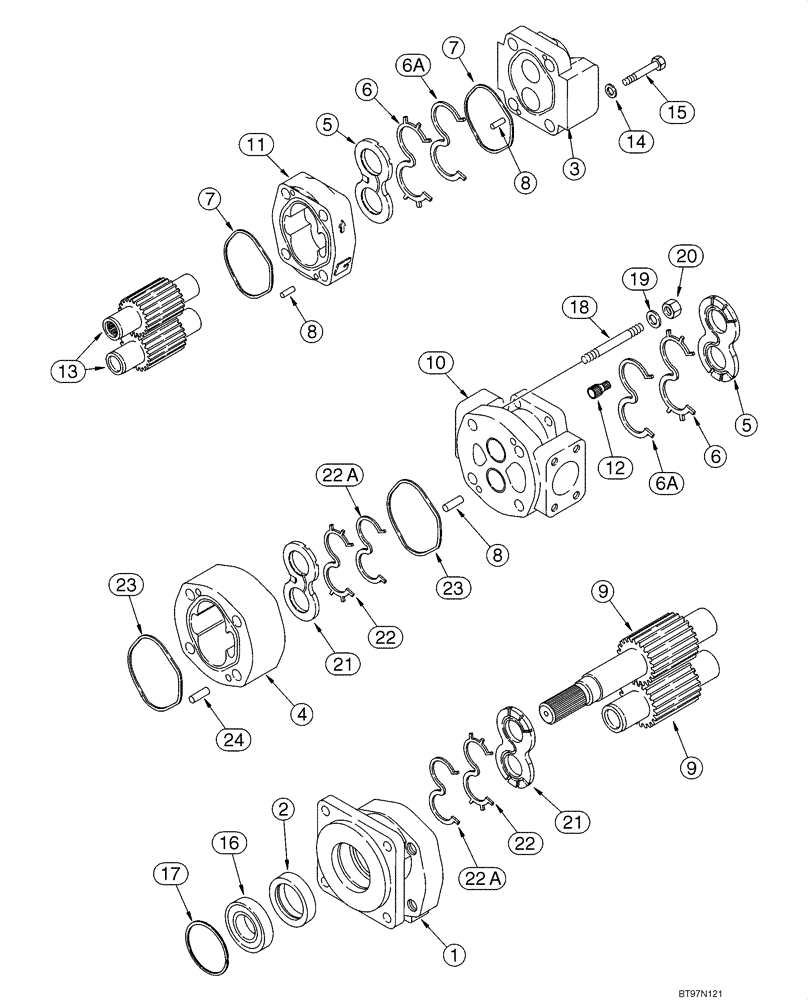

Запчасти Case 590SM (08-26) - PUMP, EQUIPMENT HYDRAULIC (08) - HYDRAULICS

257955A1

PUMP, HYDRAULIC

Incl. Ref 1 - 24; No Longer Available, Order 87435827 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate

1шт.

87435827R

REMAN-HYD PUMP

REMANUFACTURED HYD PUMP

1шт.

87435827C

CORE-HYDRAULIC PUMP

Return Number, HYD PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

Cover; Shaft End

1шт.

2

L32318

SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Cover; Closed End

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

111594A1

LARGE PLATE

PLATE, LARGE

2шт.

6

293926A1

SEAL

2шт.

6a

293925A1

SEAL

2шт.

7

111596A1

SEAL

3-1/4 ID x 3/32 in

2шт.

8

111597A1

ELEC. TERMINAL PIN

1/4 x 1/16

4шт.

9

NSS

NOT SOLD SEPARAT

17 T; Gear, Set

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

111585A1

HOUSING

1шт.

12

111593A1

SHAFT

1шт.

13

NSS

NOT SOLD SEPARAT

Gear, Set

1шт.

14

111588A1

WASHER

17/32 x 15/16 x 3/16

4шт.

15

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

16

S88754

BALL BEARING

1шт.

17

S88756

SNAP RING,#283, 3.009", Int, Spiral

1шт.

18

111583A1

STUD

4шт.

19

19-488

WASHER

11/16 x 1-11/32 x 3/16

4шт.

20

429-1010

NUT,5/8"-11, G8

4шт.

21

111589A1

LARGE PLATE

PLATE, LARGE

2шт.

22

293927A1

SEAL

2шт.

22a

293928A1

SEAL

2шт.

23

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

4-31/64 ID x 1/8 in

2шт.

24

W16323

DOWEL

4шт.

293924A1

SEAL KIT

Seal; Incl. Ref 2, 5 - 7, 21 - 23

1шт.

428651A1

KIT

Gear Set; Pump; Incl. Ref 2, 6, 6A, 21, 23 and 257948A1, Coupler, Flex; Also 482649A1, Gear Set; See Figure 08-01; Kit No Longer Available; Order Components

1шт.
