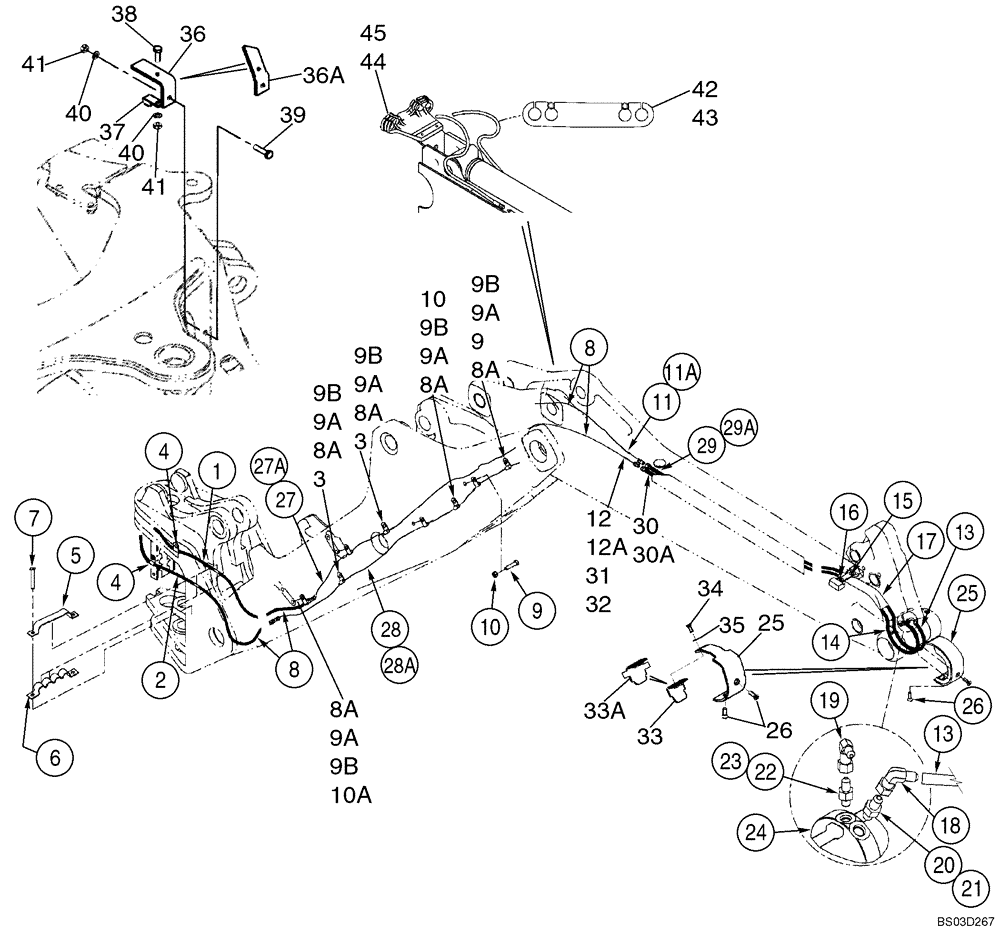

Запчасти Case 590SM (08-24) - HYDRAULICS - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS

*

At Boom and Dipper

1шт.

1

405649A2

HOSE ASSY.

3650 mm (143-3/4 in); Solenoid Valve Lower Port; Replaces 405649A1 3545 mm Hose

1шт.

2

405648A2

HOSE ASSY.

3545 mm (139-5/8 in); Solenoid Valve Upper Port; Replaces 405648A1 3420 mm Hose

1шт.

3

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

If Used

2шт.

3

414415A1

CLAMP

3/8 ID; If Used; Closed "P" Clamp

4шт.

4

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

If Used

2шт.

4

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

If Used; Half "P" Clamp

2шт.

5

385420A2

STRAP

At Swing Tower

1шт.

6

393156A1

CLAMP

1шт.

7

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; If Used

1шт.

8a

409499A1

CLAMP

Extendable Dipper Model

8-10шт.

9

409595A1

CLAMP

Extendable Dipper Model

2шт.

9a

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8-10шт.

9b

892-11008

LOCK WASHER,8mm ID

8-10шт.

10

409594A1

CLAMP

4шт.

10a

409593A1

CLAMP BRACKET

2шт.

11

405653A1

HOSE ASSY.

1880 mm (74-1/32 in); Standard Dipper

1шт.

11a

405659A1

HOSE ASSY.

2770 mm (109-3/32 in); Extendable Dipper

1шт.

12

405652A1

HOSE ASSY.

1880 mm (74-1/32 in); Standard Dipper

1шт.

12a

405656A1

HOSE ASSY.

2770 mm (109-3/32 in); Extendable Dipper

1шт.

13

405650A1

HOSE ASSY.,4.76mm ID x 1080mm L, SAE 100R17

1080 mm (42-9/16 in); To Coupler Cylinder

1шт.

14

405651A1

HOSE ASSY.,4.78mm ID x 1120mm L, SAE 100R17

1120 mm (44-1/8 in); To Coupler Cylinder

1шт.

15

374521A2

CLAMP

1шт.

16

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

M8 x 16

2шт.

17

378464A2

SLEEVE

406 mm (16 in)

1шт.

18

402855A1

90 ELBOW

Attaches To Ref 13 Hose

1шт.

19

402854A1

90 ELBOW

Attaches To Ref 14 Hose

1шт.

20

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss seal

1шт.

22

218-5052

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

3/8 fl x Or; Incl. Ref 23

1шт.

23

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

24

402919A3

CYLINDER ASSY.

Backhoe Bucket Coupler Cylinder; See Figure 08-25; Replaces 402919A2

1шт.

*

402919A2C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

*

402919A3C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

24

84270939R

REMAN-HYD CYLINDER

Reman For New PN 402919A3

1шт.

24

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

*

402919A1C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

*

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

25

402940A2

GUARD

1шт.

26

402361A3

HEX SOC SCREW,FLAT, M10 x 1.5 x 35mm, Cl 10.9

2шт.

*

406953A1

TUBE

Standard Dipper; Left-Hand

1шт.

27a

406957A1

TUBE

Extendable Dipper; Left-Hand

1шт.

28

406955A1

TUBE

Standard Dipper; Right-Hand

1шт.

28a

406959A1

TUBE

Extendable Dipper; Right-Hand

1шт.

29

406172A1

TUBE

Standard Dipper; For Mounting, See Figure 09-25

1шт.

29a

403840A1

TUBE

Extendable Dipper; For Mounting, See Figure 09-25

1шт.

30

406971A1

TUBE

Standard Dipper

1шт.

30a

403400A1

TUBE

Extendable Dipper

1шт.

31

408159A1

SLEEVE

800 mm (31-1/2 in); Standard Dipper

1шт.

31

408160A1

SLEEVE

2200 mm (86-5/8 in); Extendable Dipper

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

33

409691A1

GUARD

If Used

1шт.

33a

409691A2

GUARD

If Used

1шт.

34

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

35

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

36

256412A1

BRACKET

No Longer Available; Order 413778A1, Ref 36A

1шт.

36a

413778A1

BRACKET

1шт.

37

D48438

CLAMP

1шт.

38

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

39

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

40

892-11010

LOCK WASHER,M10

2шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

42

407745A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler

1шт.

43

407746A1

HOSE CLAMP

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.

44

407734A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler

1шт.

45

407735A1

SUPPORT

Extendable Dipper; Models With Hydraulic Coupler and Auxiliary Hydraulics

1шт.
