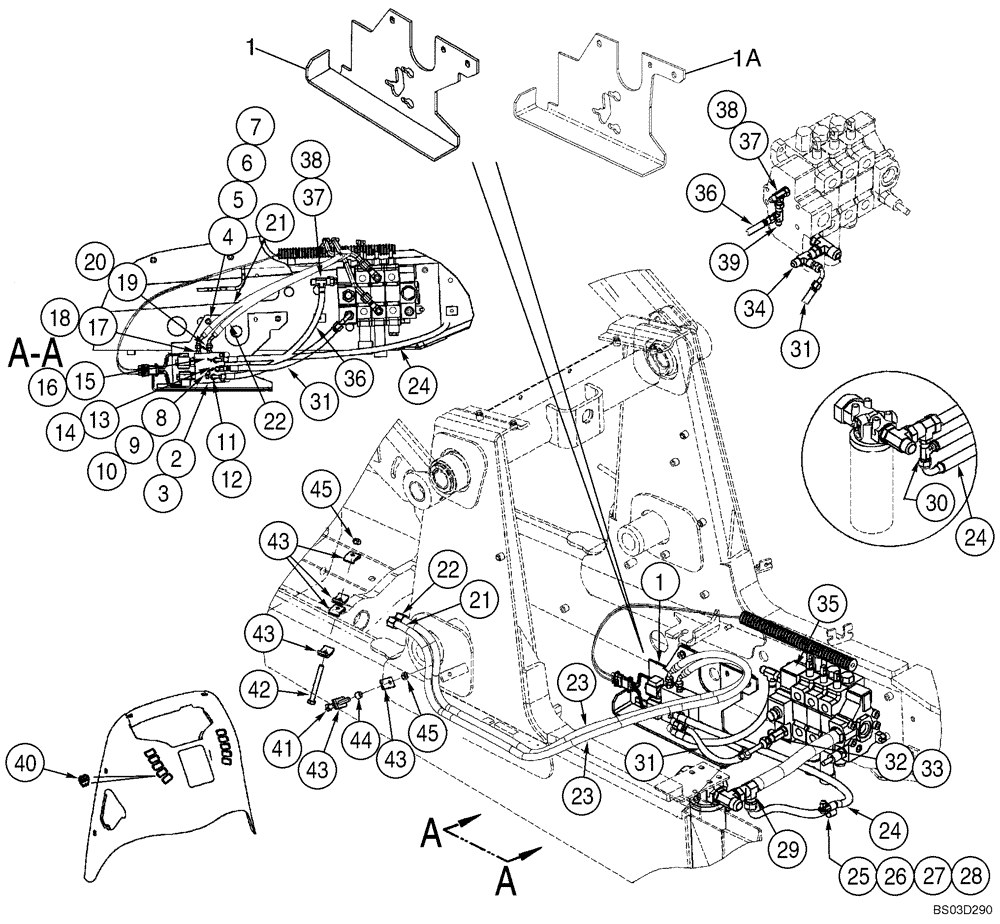

Запчасти Case 590SM (08-21) - HYDRAULICS - COUPLER, LOADER TOOL QUICK (08) - HYDRAULICS

1

362851A1

BRACKET

If Used

1шт.

1a

86993692

MOUNTING PLATE

If Used

1шт.

2

386988A3

SOLENOID VALVE

Four-Way; Two Position; Incl. 396695A1, 396696A1

1шт.

396695A1

KIT

Seal; Includes (10) O-Rings and (2) Cartridge Seal Kits Which Are Not Serviced Separately

1шт.

396696A1

KIT

Coil

1шт.

3

239-5020

O-RING,Rect, .875" ID x 1" OD, Cl 5

Not Illustrated; When Backhoe Coupler Valve and Loader Coupler Valves Are Used Together, O-Rings Are To Be Placed Between The Valves At The Tank, Pressure and Load Sense Ports

3шт.

4

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

M10 x 50

2шт.

6

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

Models with Loader Coupler Valve Only

3шт.

8

811-10100

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 100mm, Cl 8.8

M10 x 100; Models With Both Backhoe Bucket Coupler Valve and Loader Coupler Valve

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or; Incl. Ref 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

17

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2 fl x Or; Incl. Ref 18

1шт.

18

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss seal

1шт.

21

387954A2

HOSE ASSY.

2677 mm (105-13/32 in); Solenoid Valve Lower Port; For Attaching Parts, See Figure 08-22

1шт.

22

387953A1

HOSE ASSY.

2677 mm (105-13/32 in); Solenoid Valve Upper Port; For Attaching Parts, See Figure 08-22

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

14шт.

24

363220A2

HOSE ASSY.

1170 mm (46-1/16 in); Return

1шт.

25

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

26

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

27

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

If used

1шт.

27

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

If used

1шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

29

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

30

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Models With Ride Control

1шт.

31

391459A1

HOSE ASSY.

580 mm (22-27/32 in); Pressure

1шт.

32

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

1/2 x 5/8 x 1/2; Incl. Ref 33; Models Without Hand Held Auxiliary Hydraulics

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

34

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Models With Hand Held Auxiliary Hydraulics; See Hand Held Auxiliary Hydraulics For Tee At Loader Valve

1шт.

35

130060A2

PILOT VALVE

EF 19,000 kPa; Pilot Relief; See Figure 08-29

1шт.

36

363222A2

HOSE ASSY.

645 mm (25-13/32 in); Load Sensing

1шт.

37

282428A1

VALVE PRESSURE RELIE

Incl. Ref 38

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

39

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with Hand Held Auxiliary Hydraulics

1шт.

40

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler

1шт.

41

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

42

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

43

D138055

CLAMP

6шт.

44

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.
