Запчасти Case 590SM (08-19) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS

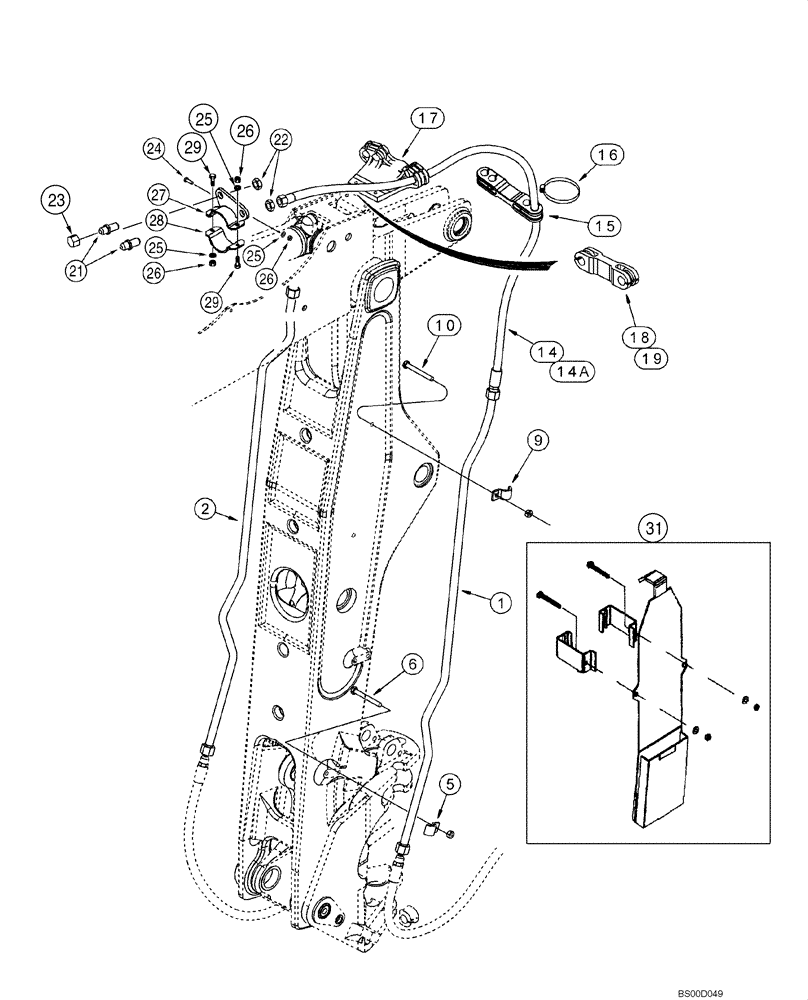

Схема запчастей Case 590SM - (08-19) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS
29
16
14a
26
15
10
24
23
29
5
26
25
26
22
14
31
2
25
18
25
9
6
21
27
1
17
19
28

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

At Boom and Dipper

1шт.

1

280441A1

TUBE,25.4 mm OD, 1962, 243 mm Length

1шт.

2

278748A1

TUBE,25.4 mm OD, 1962, 243 mm Length

1шт.

5

242459A1

SHIN

2шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

9

242459A1

SHIN

2шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

2665 mm (104-15/16"); Models with Extendable Dipper

2шт.

14a

317749A1

HOSE ASSY.

1475 mm (58-3/32 in); Models Without Extendable Dipper

2шт.

15

246158A1

CLAMP,27mm ID

Models With Extendable Dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2-3/4 x 3-5/8; Models With Extendable Dipper

4шт.

17

246151A1

SUPPORT

Models With Extendable Dipper

1шт.

18

103670A1

CLAMP,27mm ID

Rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl x bkhd fl

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

314733A1

SPECIAL CLAMP

1шт.

28

314734A1

STRAP

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

30

284928A1

BRACKET

2шт.

31

317990A1

GUARD

Boom; Component Parts Not Serviced Separately

1шт.

Выбрано товаров: 25
