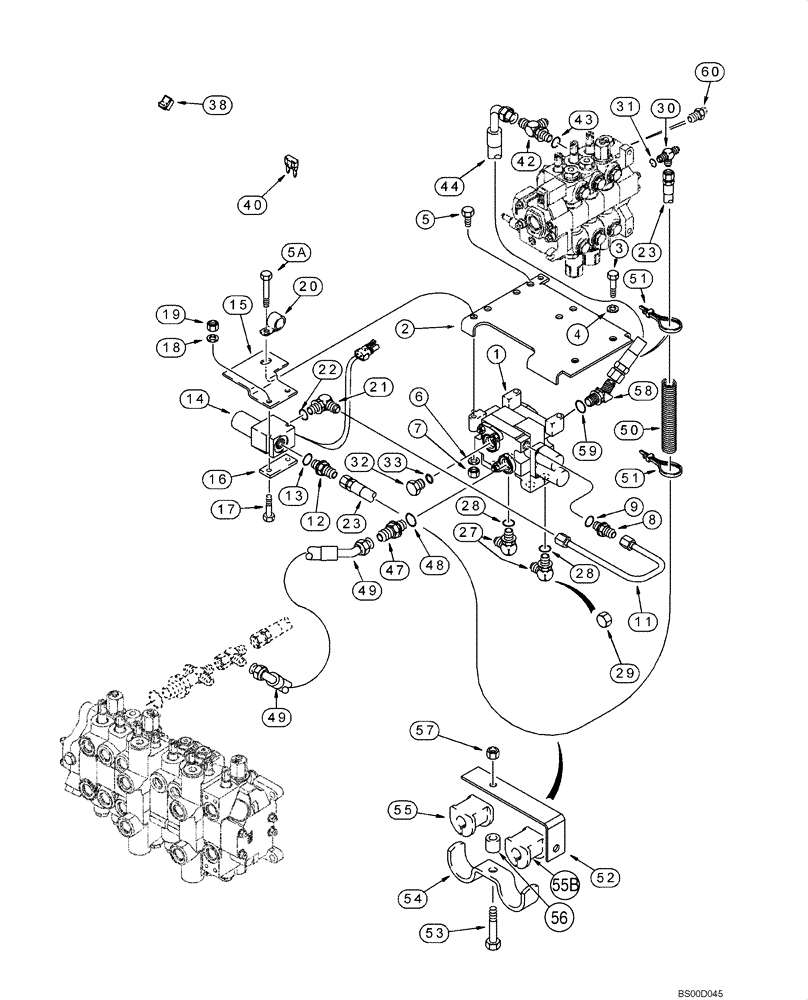

Запчасти Case 590SM (08-15) - HYDRAULICS - HAND HELD AUXILIARY (MODELS WITH OR WITHOUT EXTENDABLE DIPPER) (08) - HYDRAULICS

1

121741A1

VALVE, CONTROL

Auxiliary Valve, One Spool; Hand Held Auxiliary Hydraulics; See Figure 08-48; Also Includes Ref 32

1шт.

2

224788A3

SUPPORT

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

5a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 9

1шт.

11

300983A1

TUBE

Auxiliary Valve To Solenoid Valve Inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or; Incl. Ref 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

14

137012A1

SOLENOID VALVE

Component Parts Not Serviced Separately; Attaches To Chassis Options Harness

1шт.

15

137713A1

SUPPORT

1шт.

16

136977A1

LARGE PLATE

PLATE, LARGE

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

20

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

23

192693A1

HOSE

1490 mm (58-11/16 in); Solenoid Valve Outlet To Check Valve At Loader Valve Inlet

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or; Incl. Ref 28; For Attaching Parts, See Figure 08-16

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

Not Required When Hoses Are Attached To Fittings

2шт.

30

282428A1

VALVE PRESSURE RELIE

Steering Check; Incl. Ref 31; Loader Valve Inlet Section; For Attaching Parts, See Figure 05-02

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref 33; Inlet Port; Included with Ref 1

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

38

191532A1

SWITCH

Auxiliary Hydraulics; Attaches To Side Options Harness

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

42

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

Incl. Ref 43; Inlet Section; Lower Valve Port; For Attaching Parts, See Figure 05-02

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

44

243338A1

HOSE

910 mm (35-7/8 in)

1шт.

47

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 48

1шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

49

302474A1

HOSE

500 mm (19-11/16 in); Return, Outlet Port; To Tee At Backhoe Control Valve

1шт.

50

D132982

PADDLE,26.87mm ID x 400mm L

400 mm (15-3/4 in)

2шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

52

136008A1

SUPPORT

1шт.

53

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

54

D143422

SHIN

1шт.

55

D143797

SHOCK ABSORBER

5/8

1шт.

55b

144477A1

ISOLATOR

1шт.

56

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

1шт.

57

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

58

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16-12 fl x Or; Incl. Ref 59

1шт.

59

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

60

130060A2

PILOT VALVE

EF 19,000 kPa; Pilot Relief; See Figure 08-29; Remove Plug At Loader Valve Inlet Section and Replace With This Valve

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
