(08-14) - HYDRAULICS - CYLINDER, BACKHOE EXTENDABLE DIPPER

Запчасти Case 590SM (08-14) - HYDRAULICS - CYLINDER, BACKHOE EXTENDABLE DIPPER (08) - HYDRAULICS

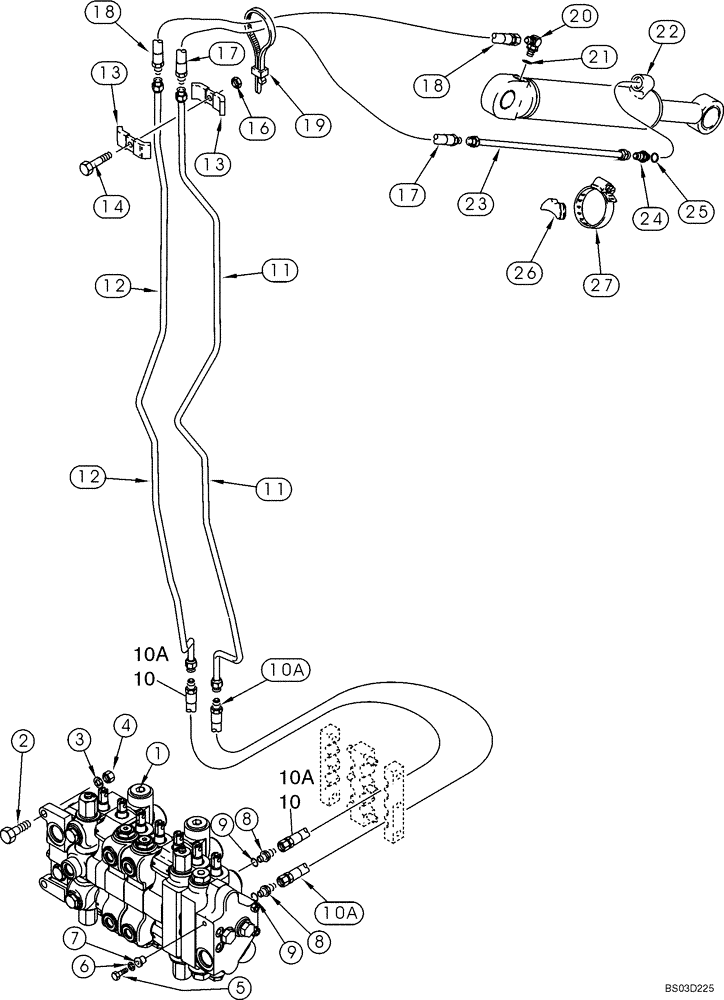

Схема запчастей Case 590SM - (08-14) - HYDRAULICS - CYLINDER, BACKHOE EXTENDABLE DIPPER (08) - HYDRAULICS
17
26
10a
10
13
23
3
12
10a
9
2
6
24
18
10
10a
12
8
27
8
13
5
21
22
11
19
18
17
20
9
11
1
7
16
4
10a
14
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-37 - 08-38

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

393366A1

HOSE ASSY.

1210 mm (47-21/32 in); For Hardware, See Figure 08-13, Ref 11-19; No Longer Used; Order 393363A1, Ref 10A

1шт.

10a

393363A1

HOSE ASSY.,15.88mm ID x 1210mm L

1210 mm (47-21/32 in); Includes Spiratex; For Hardware, See Figure 08-13, Ref 11-19

1-2шт.

11

142951A1

HYD TUBE,19.05 mm OD, 1853, 52 mm Length

1шт.

12

142960A1

HYD TUBE,19.05 mm OD, 2110.9 mm Length

1шт.

13

D40236

CLAMP

2шт.

14

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

181960A1

HOSE,12.7mm ID x 938mm L

938 mm (36-15/16 in)

1шт.

18

181961A1

HOSE,12.7mm ID x 788mm L

788 mm (31-1/32 in)

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or; Incl. Ref 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

22

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

76 ID x 1220 mm strk; Extendable Dipper Cylinder; See Figure 08-61

1шт.

23

175817A1

TUBE,15.88 mm OD

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

26

D38648

BLOCK

1шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.
