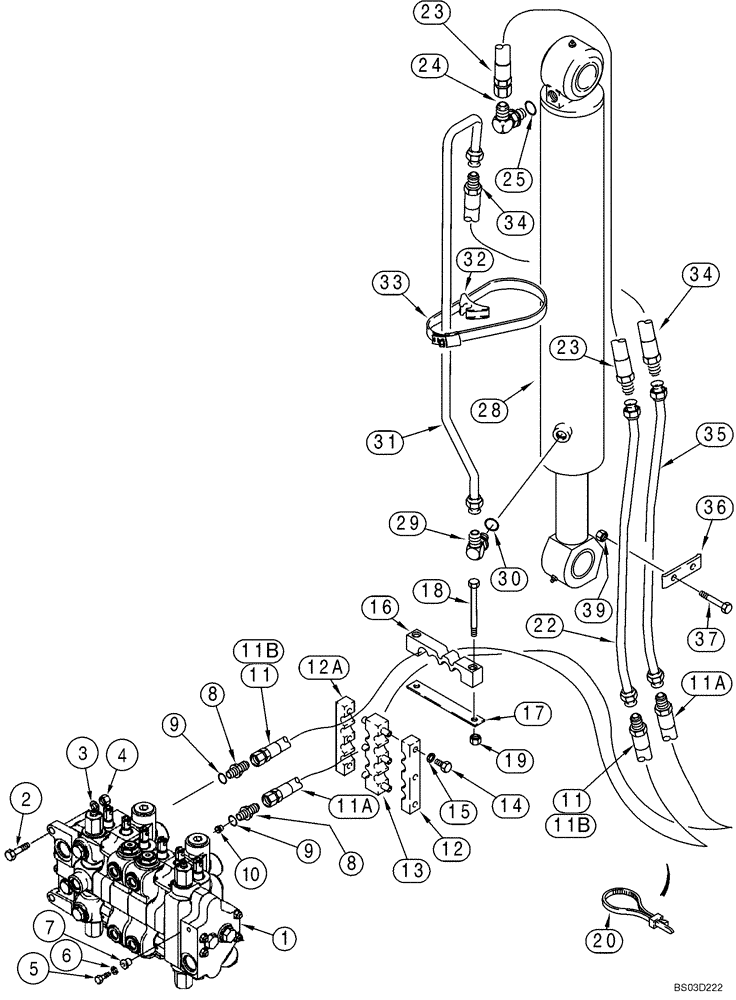

Запчасти Case 590SM (08-10) - HYDRAULICS - CYLINDER, BACKHOE BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-35 - 08-38

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

402331A1

RESTRICTOR

Lower Valve Port

1шт.

11

393375A1

HOSE ASSY.,19.05mm ID x 1313mm L

1313 mm (51-23/32 in); Upper Valve Port; No Longer Used; Order 393372A1, Ref 11B

1шт.

11a

393373A1

HOSE ASSY.,15.88mm ID x 1268mm L

1268 mm (50 in); Lower Valve Port

1шт.

11b

393372A1

HOSE ASSY.,19.05mm ID x 1313mm L

1313 mm (51-23/32 in) With Spiratex; Upper Valve Port

1шт.

12

179404A1

CLAMP

1шт.

12a

176268A1

CLAMP

1шт.

13

176266A1

CLAMP

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

372481A1

CLAMP

1шт.

17

132212A1

PLATE

1шт.

18

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

220277A1

TUBE

1шт.

23

189976A1

HOSE,19.05mm ID x 1125mm L

1125 mm (44-5/16 in)

1шт.

24

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

28

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

140 ID x 976 mm strk; Boom Cylinder; See Figure 08-58

1шт.

28

175785A1R

REMAN-HYD CYLINDER

590SM

1шт.

28

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or; Incl. Ref 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

31

179605A1

HYD TUBE,19.05 mm OD

1шт.

32

D142787

SPACER

1шт.

33

214-14112

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

6-1/16 - 7-1/2 in dia

1шт.

34

179615A1

HOSE,15.88mm ID x 560mm L

560 mm (22-3/64 in)

1шт.

35

222027A1

TUBE

1шт.

36

182035A1

CLAMP

2шт.

37

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

4шт.
