Запчасти Case 590SM (08-08) - HYDRAULICS - CYLINDER, BACKHOE STABILIZER (08) - HYDRAULICS

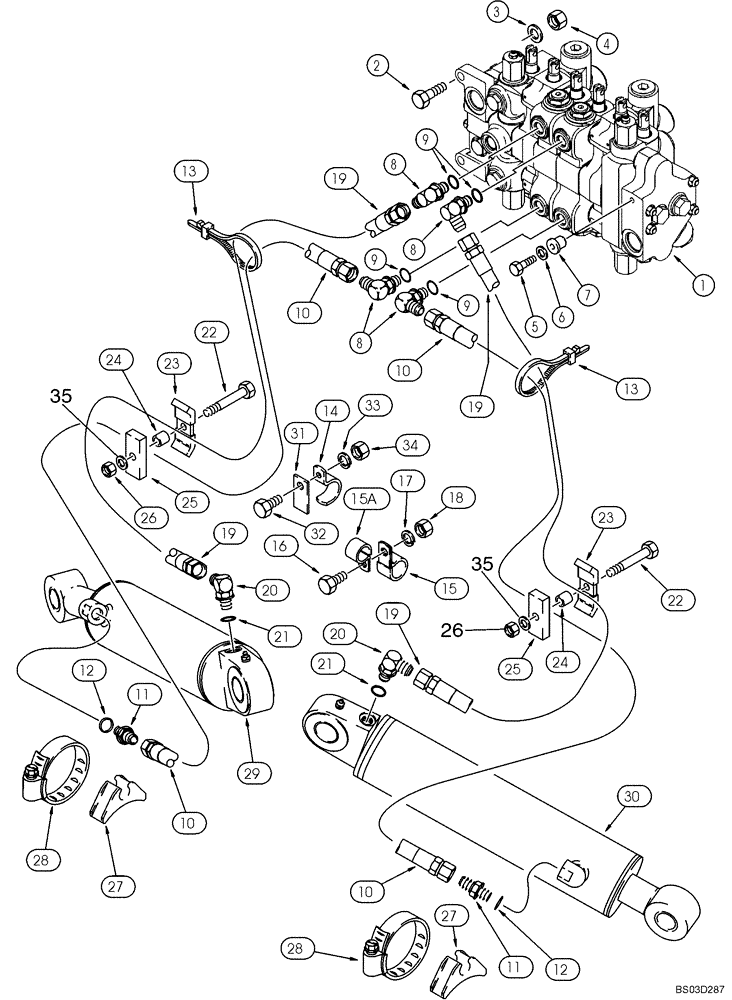

Схема запчастей Case 590SM - (08-08) - HYDRAULICS - CYLINDER, BACKHOE STABILIZER (08) - HYDRAULICS
9
10
20
33
7
22
18
11
9
10
35
26
4
25
10
15
17
28
30
25
31
27
19
12
23
19
3
9
22
11
27
23
10
13
12
32
5
9
6
20
26
15a
8
29
21
35
24
24
1
19
19
8
28
21
34
2
13
16
14

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve Assy; Control, Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-35 - 08-38

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 9

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

10

144251A2

HOSE ASSY.,9.53mm ID x 1240mm L

1240 mm (48-13/16 in); Replaces 144251A1

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

14

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

3/4 ID

1шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

15a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

390821A2

HOSE ASSY.,9.53mm ID x 954mm L

954 mm (37-9/16 in); Replaces 390821A1 918 mm Hose

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

22

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

23

D143846

CLAMP

2шт.

24

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

2шт.

25

D150099

SHIN

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

D142787

SPACER

2шт.

28

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

29

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer Cylinder; LH; See Figure 08-56

1шт.

29

177257A1R

REMAN-HYD CYLINDER

590SM

1шт.

29

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

30

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer Cylinder; RH; See Figure 08-56

1шт.

30

177256A1R

REMAN-HYD CYLINDER

590SM

1шт.

30

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

31

191758A1

PLATE

1шт.

32

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

33

892-11010

LOCK WASHER,M10

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

35

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.
