(08-06) - HYDRAULICS - CYLINDER, LOADER CLAM

Запчасти Case 590SM (08-06) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS

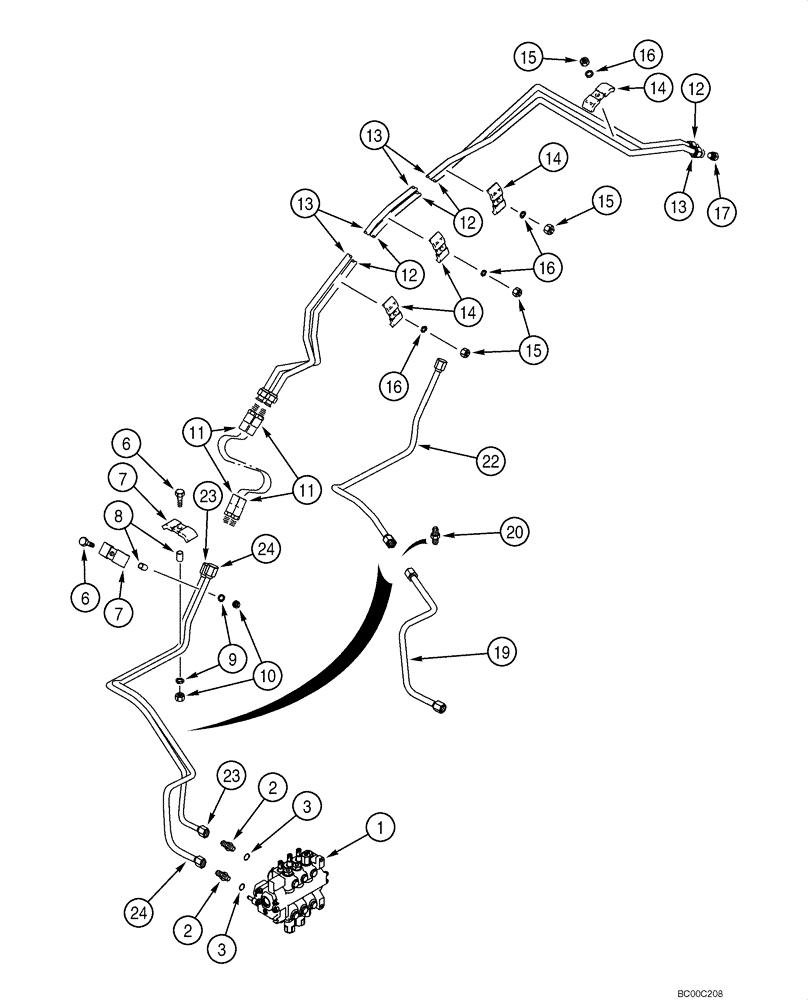

Схема запчастей Case 590SM - (08-06) - HYDRAULICS - CYLINDER, LOADER CLAM (08) - HYDRAULICS
23
3
1
13
6
24
16
14
15
12
13
2
2
23
11
15
14
12
11
6
17
9
12
7
13
20
19
16
16
10
3
7
14
22
8
15
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

358237A1

VALVE

Loader Control Valve; Three Spool; See Figure 08-28; For Mounting, See Figure 09-01

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

7

D138055

CLAMP

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

138467A1

HOSE,12.7mm ID x 680mm L

680 mm (26-3/4 in)

2шт.

12

196824A1

TUBE

Upper Clam Port

1шт.

13

196821A1

TUBE

Lower Clam Port

1шт.

14

D138055

CLAMP

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

7/8 fl; Not Used On Models With Clam Bucket

2шт.

19

232945A1

TUBE

Lower Clam Port

1шт.

20

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1шт.

22

360937A1

TUBE

Lower Clam Port

1шт.

23

360916A1

TUBE

Upper Clam Port

1шт.

24

360918A1

TUBE

Lower Clam Port; For Service, Order 19, 20, 22

1шт.
