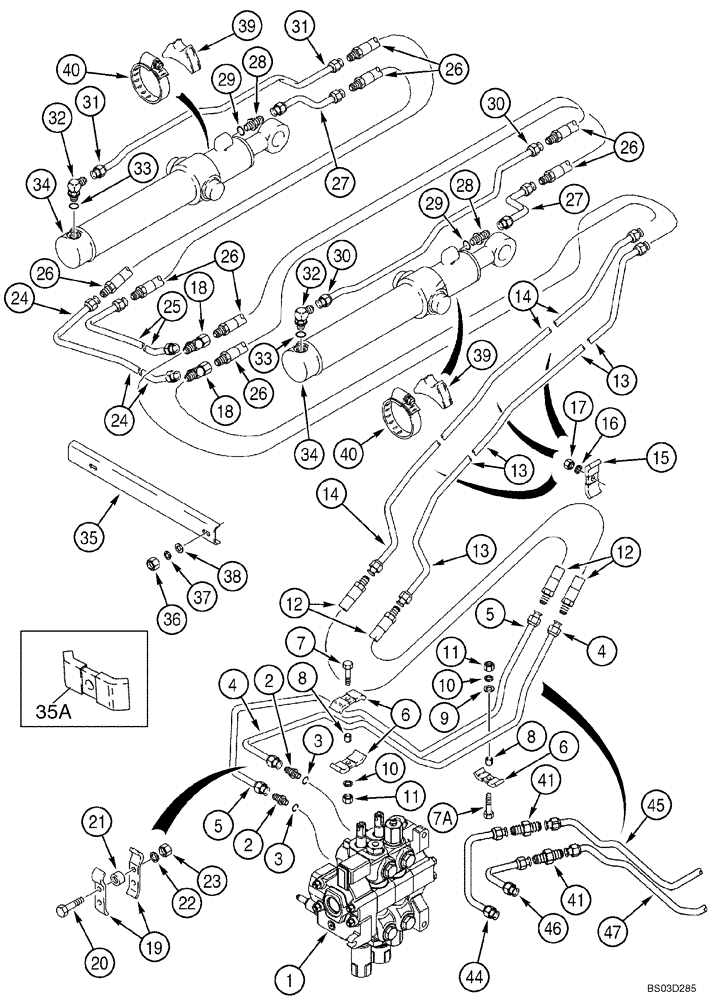

Запчасти Case 590SM (08-05) - HYDRAULICS - CYLINDER, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Loader Control Valve; For Correct Assembly and Components, See Figure(s) 08-27 - 08-28; For Mounting, See Figure 09-01

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

4

232447A1

TUBE

Upper Bucket Port; For Service, Order 41, 46, 47

1шт.

5

220169A1

TUBE

Lower Bucket Port; For Service, Order 41, 44, 45

1шт.

6

D138055

CLAMP

3шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

7a

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

138467A1

HOSE,12.7mm ID x 680mm L

680 mm (26-3/4 in)

2шт.

13

196817A1

TUBE

Lower; BSN JJG0286979

1шт.

13

418789A1

HYD TUBE

Lower; ASN JJG0286978

1шт.

14

196819A1

TUBE

Upper; BSN JJG0286979

1шт.

14

418791A1

HYD TUBE

Upper: ASN JJG0286978

1шт.

15

D138055

CLAMP

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw

2шт.

19

221733A1

SHIN

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

21

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

196815A1

TUBE

Rear

1шт.

25

196813A1

TUBE

Front

1шт.

26

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

840 mm (33")

4шт.

27

192152A1

HYD TUBE,15.88 mm OD

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

30

192156A1

TUBE,15.88 mm OD

Right-Hand Cylinder

1шт.

31

192154A1

HYD TUBE,15.88 mm OD

Left-Hand Cylinder

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or; Incl. Ref 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

34

255756A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 537.5mm Stroke

83 ID x 538 mm strk; Loader Bucket Cylinder; See Figure 08-54

2шт.

35

250648A1

PROTECTOR

No Longer Used; Order D138055, Ref 35A

1шт.

35a

D138055

CLAMP

Replaces 250648A1

2шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

39

L79937

SADDLE

2шт.

40

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

41

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1-2шт.

44

221143A1

TUBE

Lower Bucket Port

1шт.

45

221146A1

TUBE

1шт.

46

232934A1

TUBE,15.88 mm OD

Upper Bucket Port

1шт.

47

232936A1

TUBE

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
