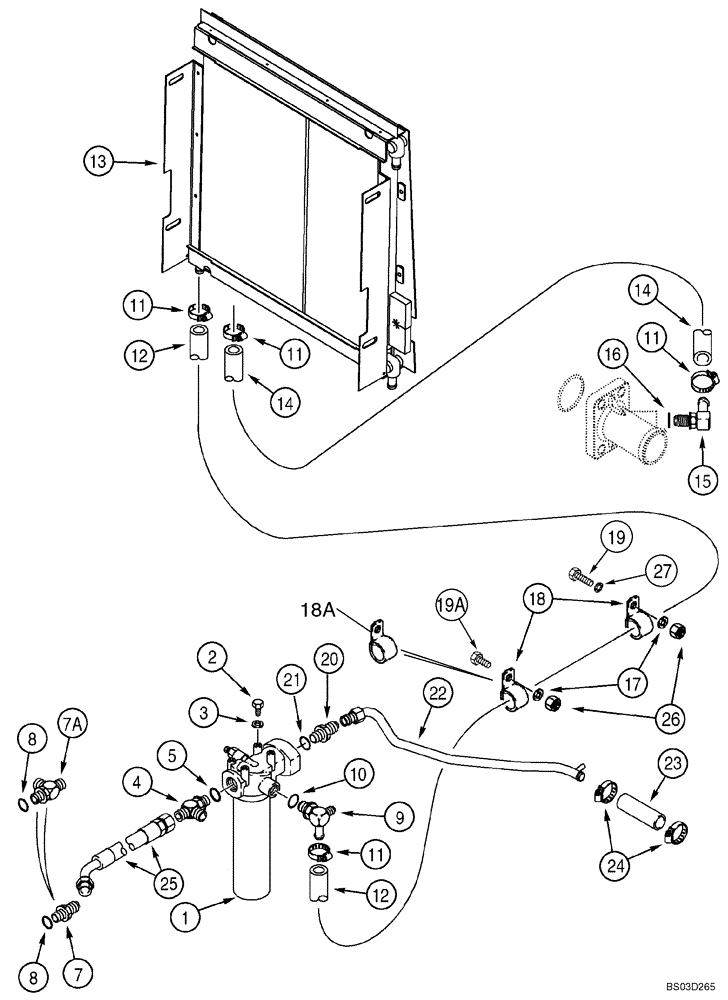

Запчасти Case 590SM (08-03) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS

1

181001A1

FILTER ASSY

Hydraulic Oil; See Figure 08-52

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter and Filter To Backhoe Control Valve; Incl. Ref 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Backhoe Control Valve Outlet Port; Models Without Extendable Dipper; Incl. Ref 8

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Backhoe Control Valve Outlet Port; Models With Extendable Dipper; If Used; Incl. Ref 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

9

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

11

328186A1

HOSE CLAMP,400mm L

4шт.

12

301341A1

HOSE

2500 mm (98-7/16 in); Includes 300 mm Hose Sleeve; Used With (2) Ref 18 Clamps; If Used

1шт.

12

407635A1

HOSE

2500 mm (98-7/16 in); Includes 1100 mm Hose Sleeve; Used With (1) Ref 18 and (1) Ref 18 Clamp

1шт.

13

383355A2

OIL COOLER

Heavy Duty; For Attaching Parts, See Figure 06-10, 06-11

1шт.

14

301342A2

HOSE

530 mm (20-7/8 in)

1шт.

15

217-342

FITTING,90 Degree Elbow, 5/8" Hose Barb x 9/16" - 18 Male ORB

To Pump Flange; Incl. Ref 16

1шт.

18

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1-2шт.

18a

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Used With 407635A1 Hose; If Used

1шт.

19

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

19a

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. Ref 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss Seal

1шт.

22

295172A1

TUBE

Return To Tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in); Cut From S118383X; Return To Tank; For Attaching Brake Line Clamp, See Figure 07-04

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

25

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

910 mm (35-27/32"); Return; Backhoe control valve filter

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
