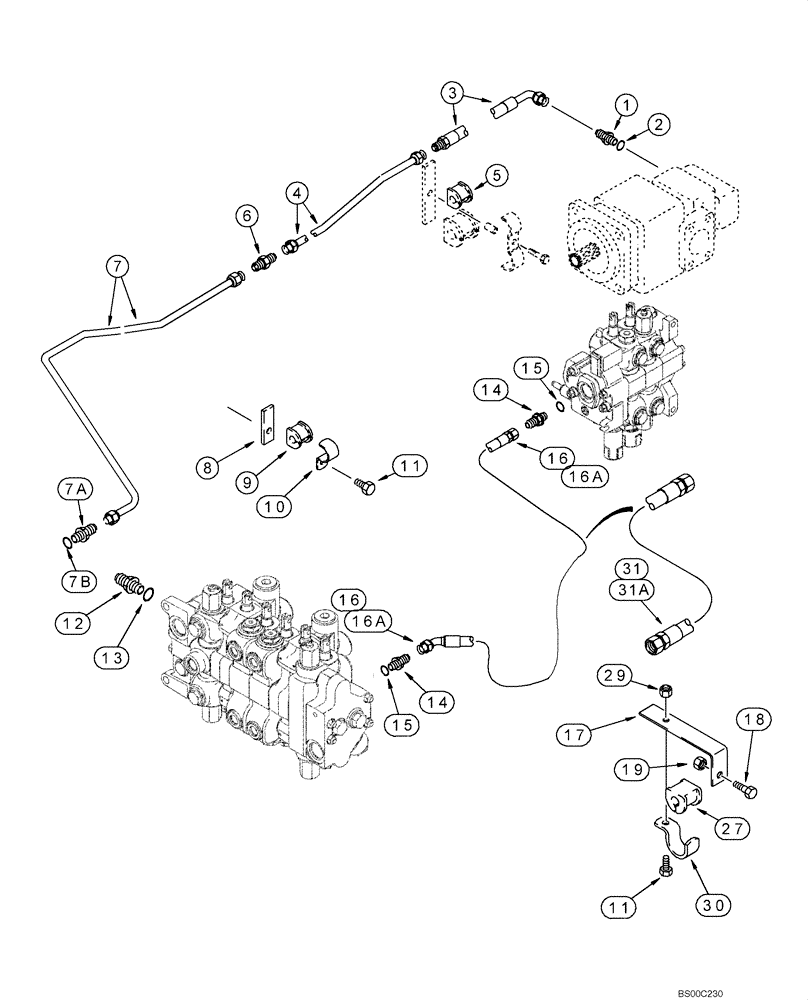

Запчасти Case 590SM (08-02) - HYDRAULICS - PUMP AND LOADER VALVE TO BACKHOE VALVE (08) - HYDRAULICS

REF

INSTRUCTION

Equipment Pump and Loader Control Valve To Backhoe Control Valve

1шт.

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or; Small Pump Section Outlet Port; Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

3

144216A1

HOSE,12.7mm ID x 800mm L

800 mm (31-1/2 in); Small Pump Section Outlet Port

1шт.

4

122127A1

TUBE,15.88 mm OD, 843, 52 mm Length

Small Pump Section Hose To Backhoe

1шт.

5

D143797

SHOCK ABSORBER

5/8; For Hardware, See Figure 08-01, Ref 28 - 33

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

7

243790A1

TUBE,15.88 mm OD, OAL 1707.6MM

Swing Supply; Small Pump Tube To Swing Section Inlet

1шт.

7a

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 7B

1шт.

7b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

8

115633A1

SUPPORT

1шт.

9

D143797

SHOCK ABSORBER

5/8

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

3/4 ID

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. Ref 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

16

144240A1

HOSE,3/4" ID, 1028mm L

1028 mm (40-1/2 in); Loader Valve Power Beyond Port; To Backhoe Control Valve Inlet; Models With Two Spool Loader Control Valve; With Hand Held And/Or Backhoe Auxiliary Hydraulics

1шт.

16a

144241A1

HOSE,19.05mm ID x 977mm L

977 mm (38-15/32 in); Loader Valve Power Beyond Port; To Backhoe Control Valve Inlet; Models With Three Spool Loader Control Valve; With Hand Held And/Or Backhoe Auxiliary Hydraulics

1шт.

17

136008A1

SUPPORT

1шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

27

144477A1

ISOLATOR

Power beyond hose

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

30

144479A1

CLAMP

1шт.

31

315284A1

HOSE ASSY.,3/4" ID, 1006mm L

1006 mm (39-5/8 in); Loader Valve Power Beyond Port; To Backhoe Control Valve Inlet; Models With Two Spool Loader Control Valve; Without Hand Held Or Backhoe Auxiliary Hydraulics

1шт.

31a

325662A1

HOSE ASSY.

956 mm (37-21/32 in); Loader Valve Power Beyond Port; To Backhoe Control Valve Inlet; Models With Three Spool Loader Control Valve; Without Hand Held Or Backhoe Auxiliary Hydraulics

1шт.
