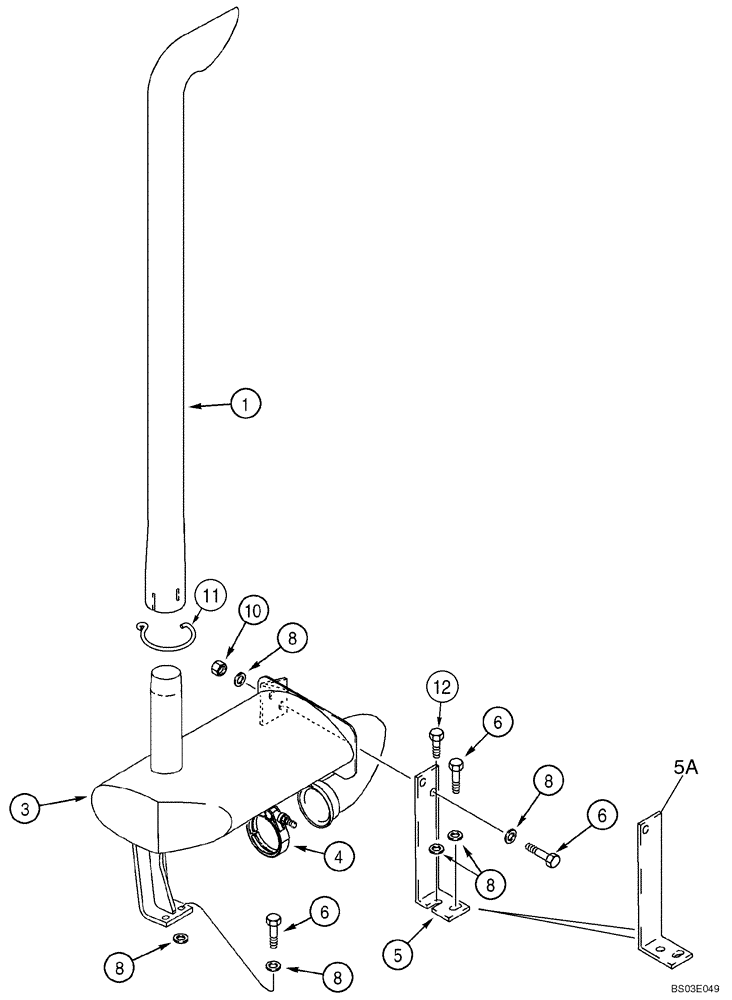

Запчасти Case 590SM (02-05) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

432013A1

KIT

Service, Incl. Ref 1, 3, 11

1шт.

1

392301A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

3

392295A1

MUFFLER

1шт.

4

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

5

225033A1

SUPPORT

If Used

1шт.

5a

225033A2

BRACKET

If Used

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

401541A1

SPRING CLIP

1шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.
