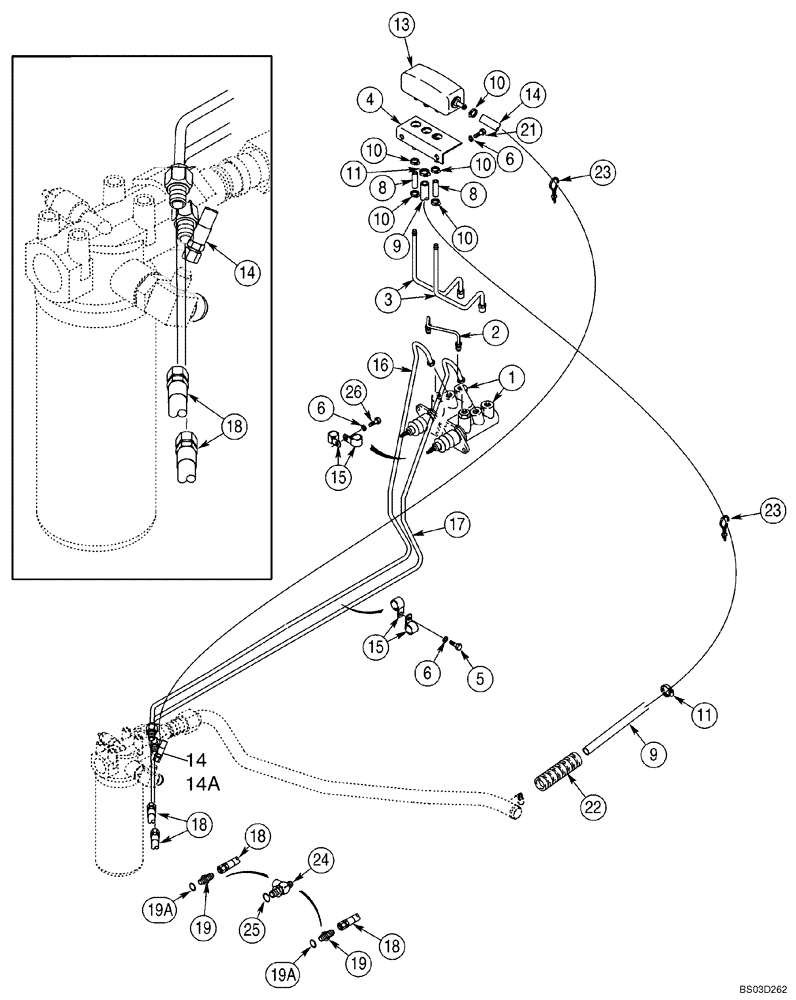

Запчасти Case 590SM (07-04) - HYDRAULICS - BRAKE MASTER CYLINDER (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER See Figure 07-05

2шт.

2

345061A2

TUBE

1шт.

3

345325A2

TUBE,7.94 mm OD, 214.4, 102.2 mm Length

2шт.

4

345382A1

SUPPORT

If Used

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

892-11008

LOCK WASHER,8mm ID

2-4шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

2шт.

9

397076A1

HOSE,12.70 mm ID x 1500.00 mm, SAE 100R6

Reservoir Outlet, Attaches To Return To Tank Tube, See Figure 08-03

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

13

1976943C1

RESERVOIR

1шт.

14

131676A1

HOSE,7.94mm ID x 1590mm L

1590 mm (62-5/8 in), Reservoir Inlet, Attaches To Tee At Hydraulic Oil Filter, See Figure 08-03; No Longer Used, Order 86991496, Ref 14A

1шт.

14a

86991496

HOSE ASSY.

1666 mm (65-19/32 in), Reservoir Inlet; Replaces 131676A1, Ref 14, Used On Some Models; See Figure 08-03

1шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

4шт.

16

397177A2

TUBE

Left-Hand; Replaces 397177A1

1шт.

17

396620A2

TUBE

Right-Hand; Replaces 396620A1

1шт.

18

409318A1

HOSE ASSY.,6.35mm ID x 565mm L

565 mm (22-1/4 in), Brake Tube To Adapter On Rear Axle; Replaces 142007A1 625 mm Long Hose Used On Some Models

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 19A; Models Without Powershift Transmission

2шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If Used; Replaces 614-8016 M8 x 16 Bolt Used On Some Models

2шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

400 mm (15-3/4 in)

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1-3шт.

24

222889A1

FITTING

Tee, Incl. Ref 25; Models With Powershift Transmission

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.
