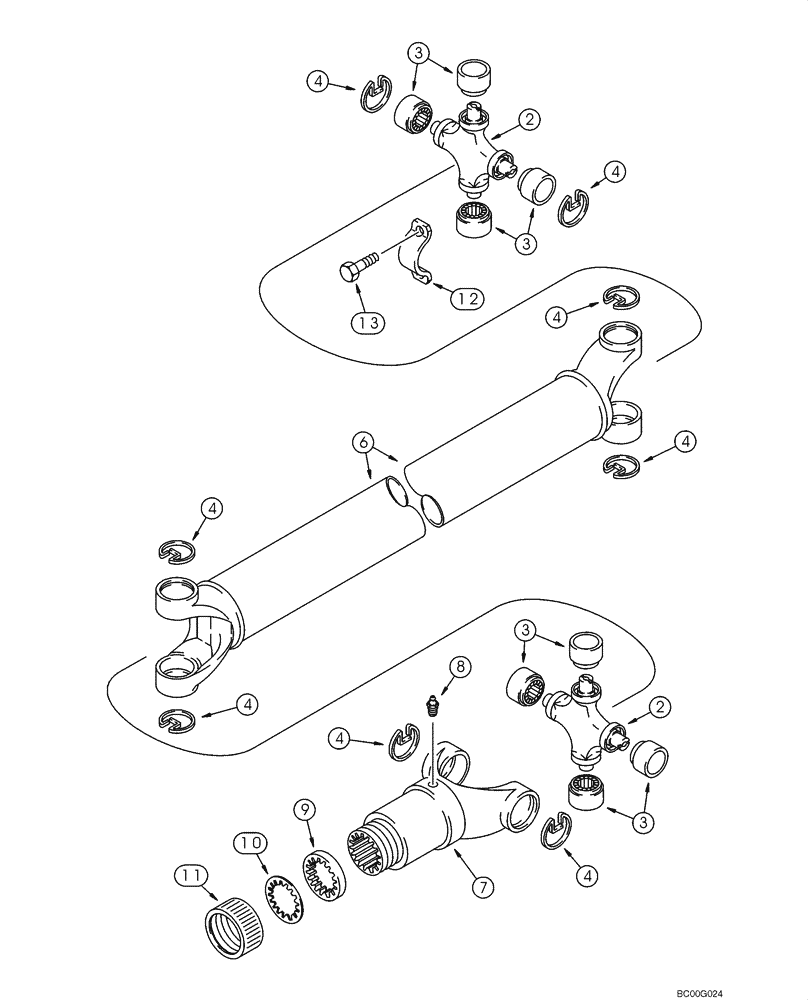

Запчасти Case 590SM (06-47) - DRIVE SHAFT, REAR AXLE (06) - POWER TRAIN

367860A3

DRIVE SHAFT

Models Without Powershift Transmission, Incl. 393231A1, Ref 2 - 13

1шт.

367859A2

DRIVE SHAFT

Models With Powershift Transmission, Incl. 393231A1, Ref 2 - 13

1шт.

393231A1

SPIDER

Kit, Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Journal

4шт.

4

NSS

NOT SOLD SEPARAT

Ring

4шт.

6

393233A1

DRIVE SHAFT

367860A3 Drive Shaft

1шт.

6

393232A1

DRIVE SHAFT

367859A2 Drive Shaft

1шт.

7

144279A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

D149860

SERVICE KIT

Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Cork

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Steel

1шт.

11

NSS

NOT SOLD SEPARAT

Cap

1шт.

12

90-6682T1

CLAMP

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Replaces D137627 Bolt

4шт.
