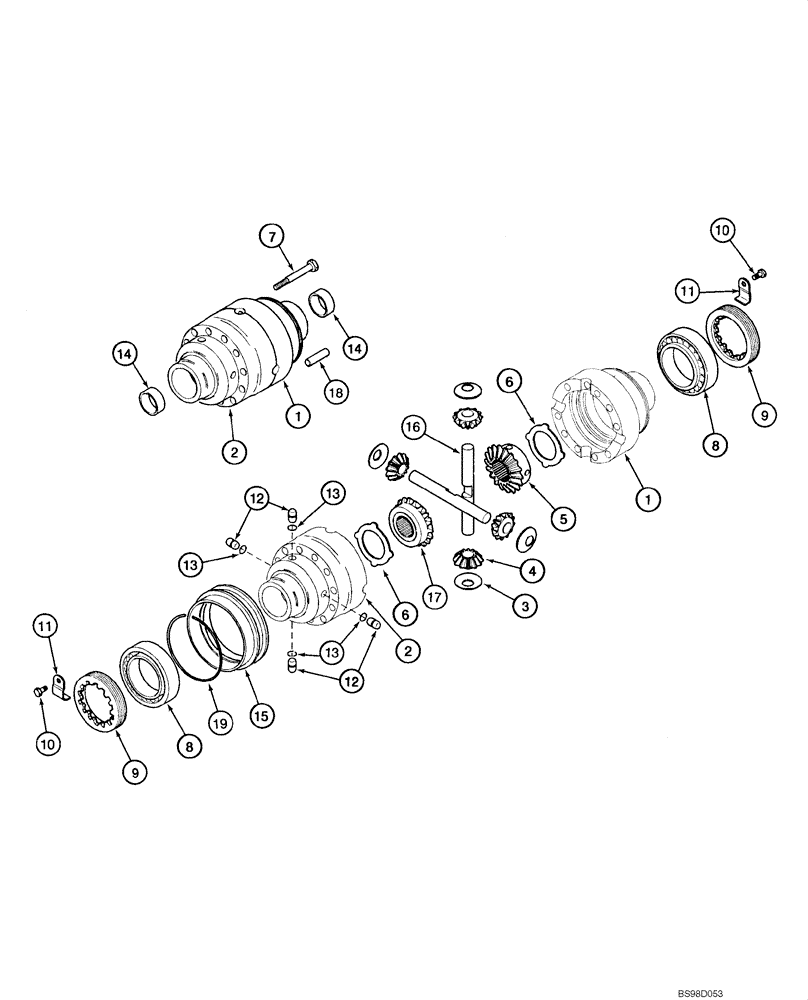

Запчасти Case 590SM (06-41) - AXLE, REAR DRIVE - DIFFERENTIAL (CLOCKWISE INPUT, MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

384959A1

AXLE, REAR

AXLE REAR w/o Powershift Transmission; Incl. Ref 1 - 19; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384959A1R

REMAN-REAR AXLE

REMANUFACTURED, Rear, w/o Powershift Transmission

1шт.

384959A1C

CORE-REAR AXLE

Return Number

1шт.

310482A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

310481A1

SET OF PARTS

Differential Gear Set, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

3

E135777

WASHER

Thrust

4шт.

4

190471A1

PINION

Sun Gear, 12T, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 310481A1 Gear Set Kit

4шт.

5

E135780

GEAR WHEEL

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 310481A1 Gear Set Kit

1шт.

6

190469A1

THRUST WASHER

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

M12 x 90; 12.9

10шт.

8

E135785

BEARING

2шт.

9

P3034505

NUT

Lock Ring

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

175959A1

BRACKET

Bracket

2шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

1966875C1

BUSHING

2шт.

15

191067A1

SLEEVE

1шт.

310481A1

SET OF PARTS

Differential Gear Set, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

16

190468A1

SHAFT

Sun Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 310481A1 Gear Set Kit

2шт.

17

311204A1

PINION

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 310481A1 Gear Set Kit

1шт.

18

D143033

DOWEL

12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.
