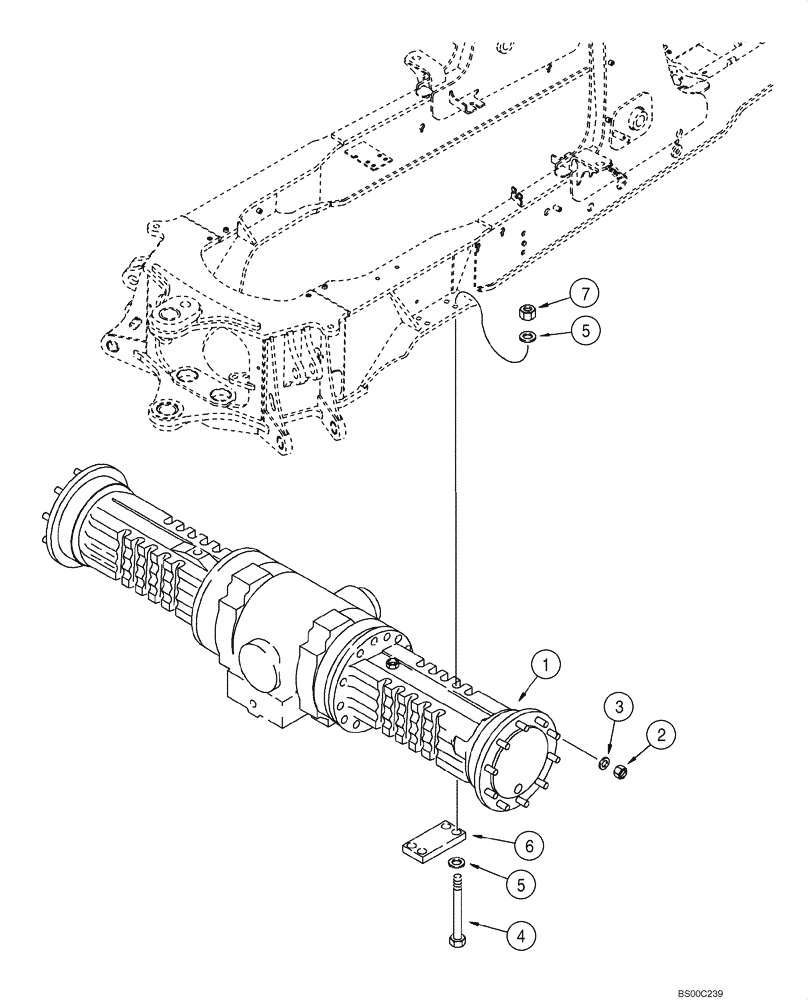

Запчасти Case 590SM (06-38) - AXLE, REAR DRIVE - MOUNTING (06) - POWER TRAIN

1

384959A1

AXLE, REAR

AXLE REAR Models Without Powershift Transmission, See Figures 06-40 - 06-46, 07-01, 07-02

1шт.

1

384959A1R

REMAN-REAR AXLE

Remanufactured, 384959A1 Axle

1шт.

1

384959A1C

CORE-REAR AXLE

Return Number

1шт.

1a

384960A1

AXLE, REAR

AXLE REAR Models With Powershift Transmission, See Figures 06-40 - 06-46, 07-01, 07-02, Not Illustrated

1шт.

1a

384960A1R

REMAN-REAR AXLE

Remanufactured, 384960A1 Axle

1шт.

1a

384960A1C

CORE-REAR AXLE

Return Number

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm

20шт.

3

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

6

117933A1

LARGE PLATE

PLATE, LARGE

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
