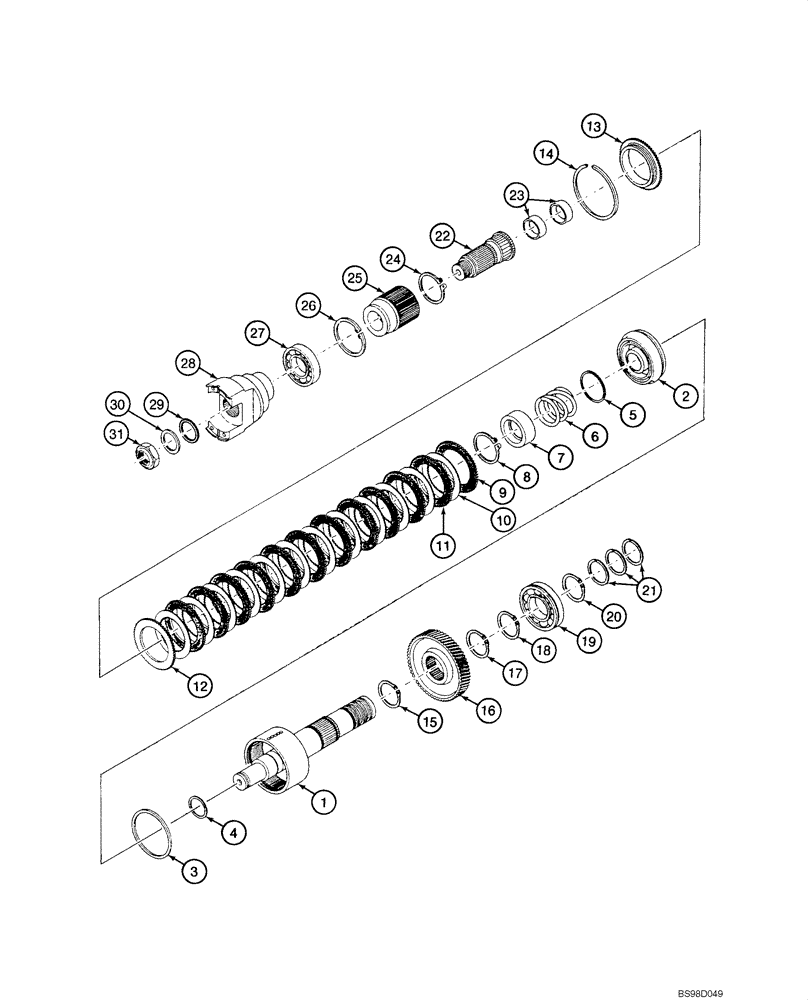

Запчасти Case 590SM (06-33) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, OUTPUT SHAFT (06) - POWER TRAIN

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 31; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 31; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

305729A1

SHAFT

Drum, Front Output, Rear Assy

1шт.

2

291520A1

PISTON

Incl. Ref 3, 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

5

291529A1

RING

Wear Ring

1шт.

6

291531A1

SPRING

1шт.

7

291530A1

RETAINER

Seat

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

Friction

1шт.

10

291580A1

DISC

Friction

12шт.

11

291579A1

DISC

Friction

11шт.

12

291578A1

DISC

Friction

1шт.

13

291571A1

DISC

Backing Plate

1шт.

14

292415A1

RING, SNAP

RING SNAP Retaining Ring

1шт.

15

800-1165

SNAP RING,M65, Ext

No. 65

1шт.

16

291554A1

PINION

Gear, Lower Output, 39T

1шт.

17

800-1165

SNAP RING,M65, Ext

No. 65

1шт.

18

800-1160

SNAP RING,M60, External

1шт.

19

292434A1

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

20

800-1160

SNAP RING,M60, External

1шт.

21

291540A1

SEALING RING

SEALRING Seal Ring

3шт.

22

291575A1

PINION

Shaft, Front Output, Front Assy; Incl. Ref 23

1шт.

23

292175A1

BUSHING

2шт.

24

800-5160

SNAP RING,M60, Ext

No. 60

1шт.

25

291559A1

PINION

HUB

1шт.

26

800-21100

SNAP RING,Int, M100 x 3

1шт.

27

292424A1

BALL BEARING

1шт.

28

291524A1

SHIN

YOKE

1шт.

29

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

30

S89696

WASHER

1шт.

31

S89695

NUT

1-1/4 NF

1шт.
