Запчасти Case 590SM (06-32) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, SECOND GEAR (06) - POWER TRAIN

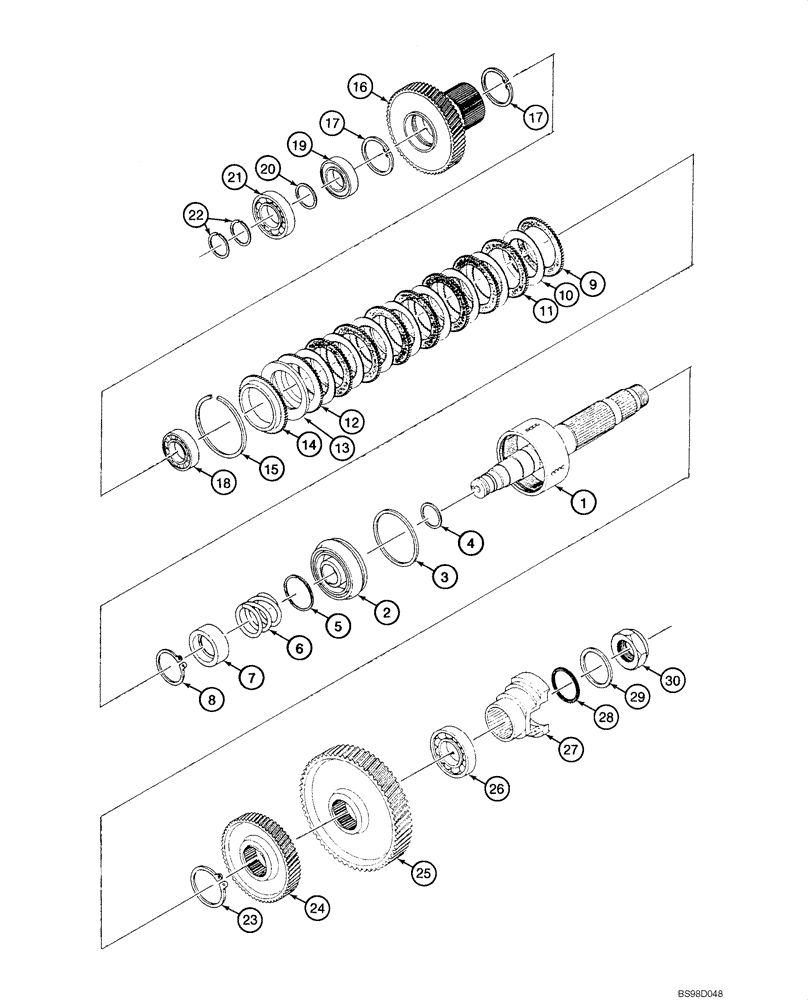

Схема запчастей Case 590SM - (06-32) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, SECOND GEAR (06) - POWER TRAIN
22
21
8
11
13
17
3
30
7
2
6
18
9
19
14
27
16
4
23
5
17
29
26
20
10
12
15
24
1
25
28

Артикул

Название

Примечание

Количество

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 30; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 30; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

305728A1

SHAFT

Drum, Second Clutch

1шт.

2

291520A1

PISTON

Incl. Ref 3, 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

5

291529A1

RING

Wear Ring

1шт.

6

291531A1

SPRING

1шт.

7

291530A1

RETAINER

Seat

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

Friction

1шт.

10

291580A1

DISC

Friction

8шт.

11

291579A1

DISC

Friction

7шт.

12

291578A1

DISC

Friction

1шт.

13

291533A1

WASHER

Spacer

1шт.

14

291571A1

DISC

Backing Plate

1шт.

15

292415A1

RING, SNAP

RING SNAP Retaining Ring

1шт.

16

291555A1

PINION

Gear, Second Clutch, 52T

1шт.

17

800-2175

SNAP RING,M75, Int

No. 75

2шт.

18

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

19

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

20

291541A1

WASHER

Ring

1шт.

21

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

22

291528A1

SEALING RING

SEALRING Seal Ring

2шт.

23

800-5160

SNAP RING,M60, Ext

No. 60

1шт.

24

291550A1

PINION

Gear, Drive, Lower Output, 41T

1шт.

25

291553A1

PINION

Gear, Upper Output, 59T

1шт.

26

292433A1

BALL BEARING

1шт.

27

291524A1

SHIN

YOKE, Output

1шт.

28

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

29

S89696

WASHER

1шт.

30

S89695

NUT

1-1/4 NF

1шт.

Выбрано товаров: 34
