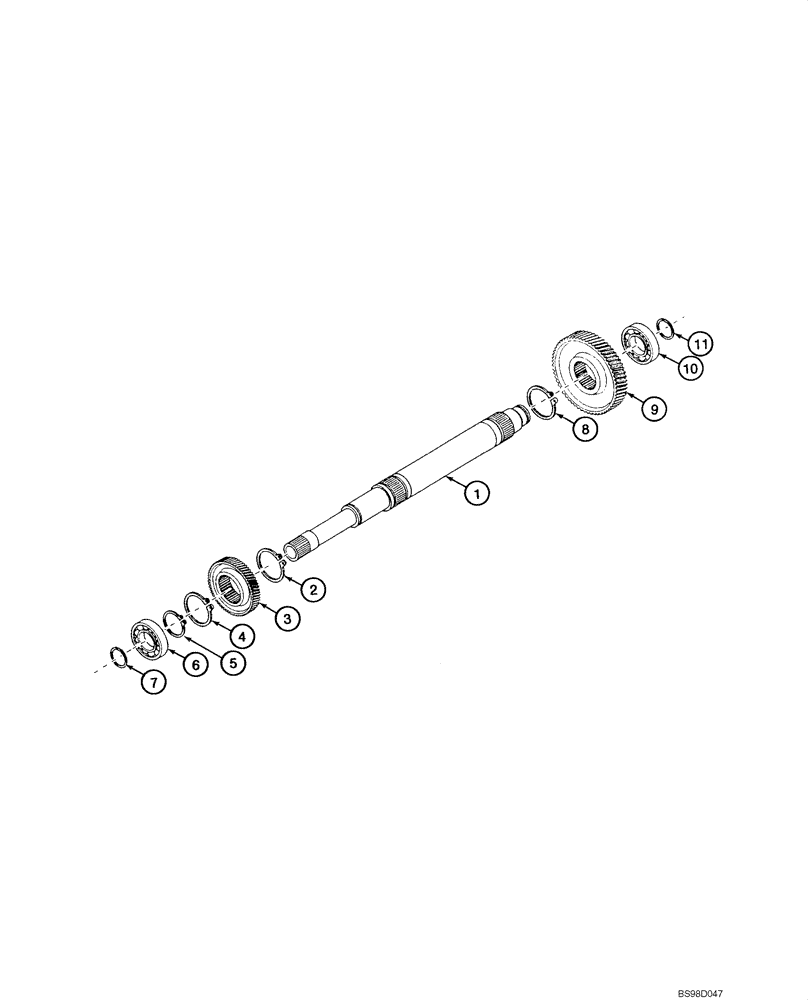

Запчасти Case 590SM (06-31) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, PUMP DRIVE (06) - POWER TRAIN

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

291563A1

SHAFT

Input Shaft

1шт.

2

800-5150

SNAP RING,M50, Ext

No. 50

1шт.

3

291549A1

PINION

Gear, Forward Low, 26T

1шт.

4

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

5

800-1140

SNAP RING,M40, Ext

1шт.

6

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

7

291528A1

SEALING RING

SEALRING Seal Ring

1шт.

8

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

9

291548A1

PINION

Gear, Forward High, 62T

1шт.

10

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

11

291528A1

SEALING RING

SEALRING Seal Ring

1шт.
