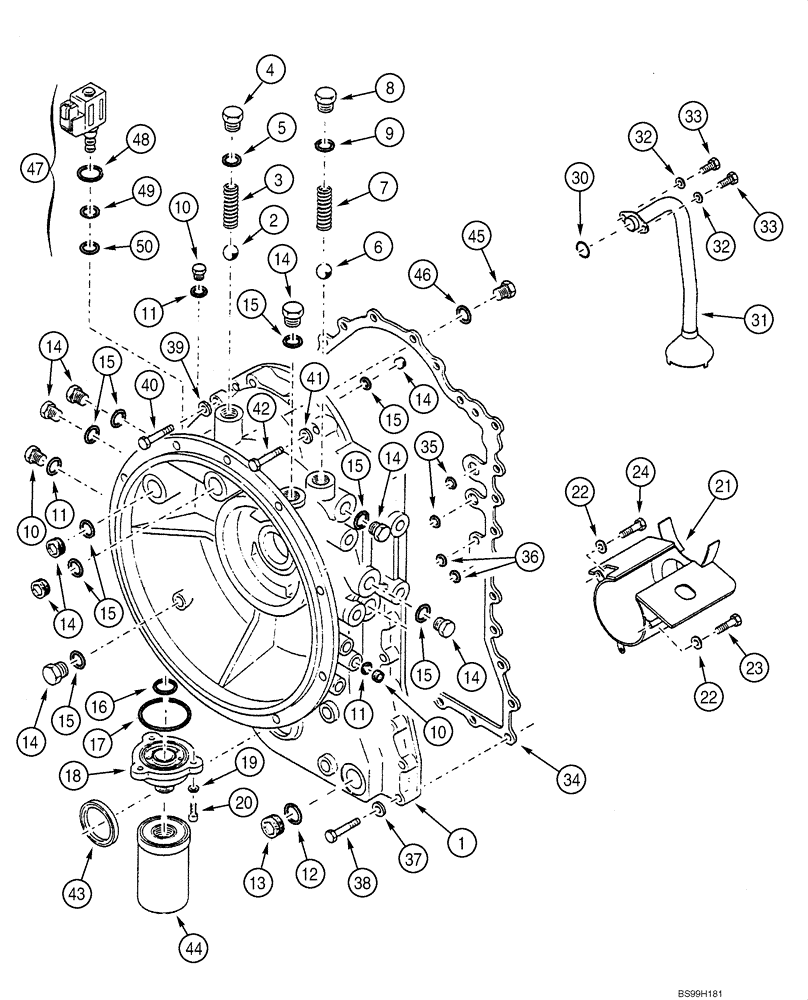

Запчасти Case 590SM (06-25) - TRANSMISSION ASSY, POWERSHIFT - HOUSING (06) - POWER TRAIN

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

361940A1

HOUSING

Converter

1шт.

2

211-1024

BALL,3/4" Dia

3/4; 24,CRS

1шт.

3

291568A1

SPRING

1шт.

4

292413A1

PLUG

Incl. Ref 5

1шт.

5

238-9119

O-RING,-119, Cl 9, .924" ID x .103" Thk

1шт.

6

511-10250

BALL,25mm Dia

25 mm; 28, CRS

1шт.

7

291525A1

SPRING

1шт.

8

292166A1

PLUG

Incl. Ref 9

1шт.

9

238-7123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 7, 75 Duro

1шт.

10

292164A1

PLUG

Incl. Ref 11

3шт.

11

238-7011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Not Used

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Not Used

1шт.

14

292165A1

PLUG

Incl. Ref 15

9шт.

15

238-7116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

16

292419A1

O-RING

1шт.

17

238-5150

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

1шт.

18

362140A1

SUPPORT

Adapter

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

3шт.

21

305725A1

BAFFLE

1шт.

22

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

23

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

M10 x 16; 12.9

2шт.

24

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

30

238-7218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 7, 75 Duro

1шт.

31

291565A1

TUBE

Tube

1шт.

32

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

33

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

M10 x 16; 12.9

2шт.

34

291543A1

GASKET

1шт.

35

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

2шт.

36

238-7013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

2шт.

37

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

14шт.

38

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

M10 x 50; 10.9

14шт.

39

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

40

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

41

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

4шт.

42

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

43

291527A1

SEAL

1шт.

44

372246A1

FILTER ASSY

Replaces 291538A1

1шт.

45

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 46

1шт.

47

349295A1

SOLENOID VALVE

Differential Lock Solenoid Valve; Incl. Ref 48 - 53

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

49

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

50

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

51

349291A1

CARTRIDGE

Valve, Cartridge, Component Parts Not Serviced Separately, Not Illustrated

1шт.

52

298614A1

SOLENOID

Not Illustrated

1шт.

53

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

Not Illustrated

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
