87478872

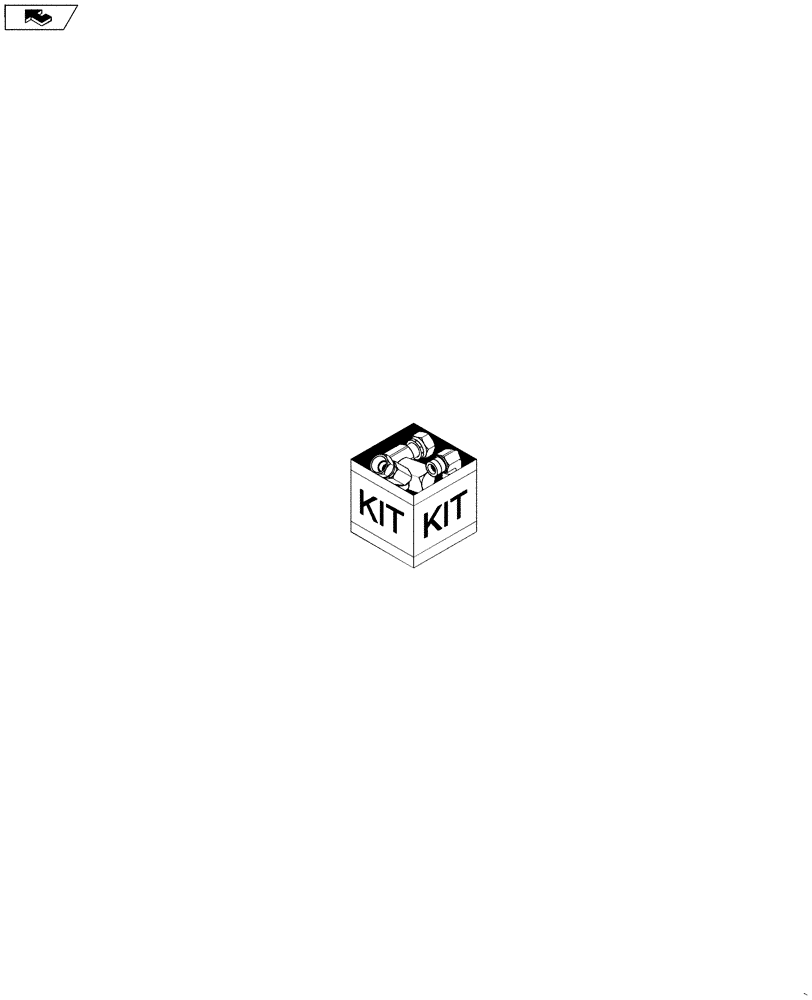

GASKET KIT
Kit, Cylinder Head Gaskets And Plugs; Incl. 1 - 20
1шт.
1
4895179
EXPANSION PLUG,M20.93
Not Used In This Application
3шт.
2
4899072
O-RING,1.6mm Thk x 8.1mm ID
See Figure 10.001.02
1шт.
3
4895085
EXPANSION PLUG,25.74mm
See Figure 10.101.01
9шт.
4
4895406
EXPANSION PLUG,9.8mm OD
See Figure 10.304.10
5шт.
5
4895407
EXPANSION PLUG,38.28mm OD
See Figure 10.101.01
1шт.
6
4895408
PLUG,0.511" L
See Figure 10.101.01
2шт.
7
4899017
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
Not Used In This Application
1шт.
8
2852028
GASKET,86mm ID x 94.6mm OD x 8.6mm Thk
Not Used In This Application
1шт.
9
4899195
O-RING,86mm ID
Not Used In This Application
1шт.
10
4899921
GASKET,1.2mm Thk
See Figure 10.254.06
2шт.
11
2854701
GASKET,0.8mm Thk
See Figure 10.254.06
1шт.
12
2852033
GASKET,7mm Thk
Not Used In This Application
4шт.
13
J935449
ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L
Not Used In This Application
4шт.
14
4899228
GASKET,12mm Thk
See Figure 10.101.02
1шт.
15
4899239
ISOLATOR,29mm OD x 13mm L
See Figure 10.101.02
4шт.
16
4895133
GASKET,0.5mm Thk
See Figure 10.250.05
1шт.
17
2852071
GASKET,0.5mm Thk
See Figure 10.250.05
1шт.
18
2853800
MANIFOLD GASKET,1.4mm Thk
Not Used In This Application
4шт.
19
2830445
MANIFOLD GASKET
Not Used In This Application
4шт.
20
4899467
GASKET
See Figure 10.250.06
1шт.
