Запчасти Case 580SM (10.001.02[01]) - CYLINDER BLOCK (10) - ENGINE

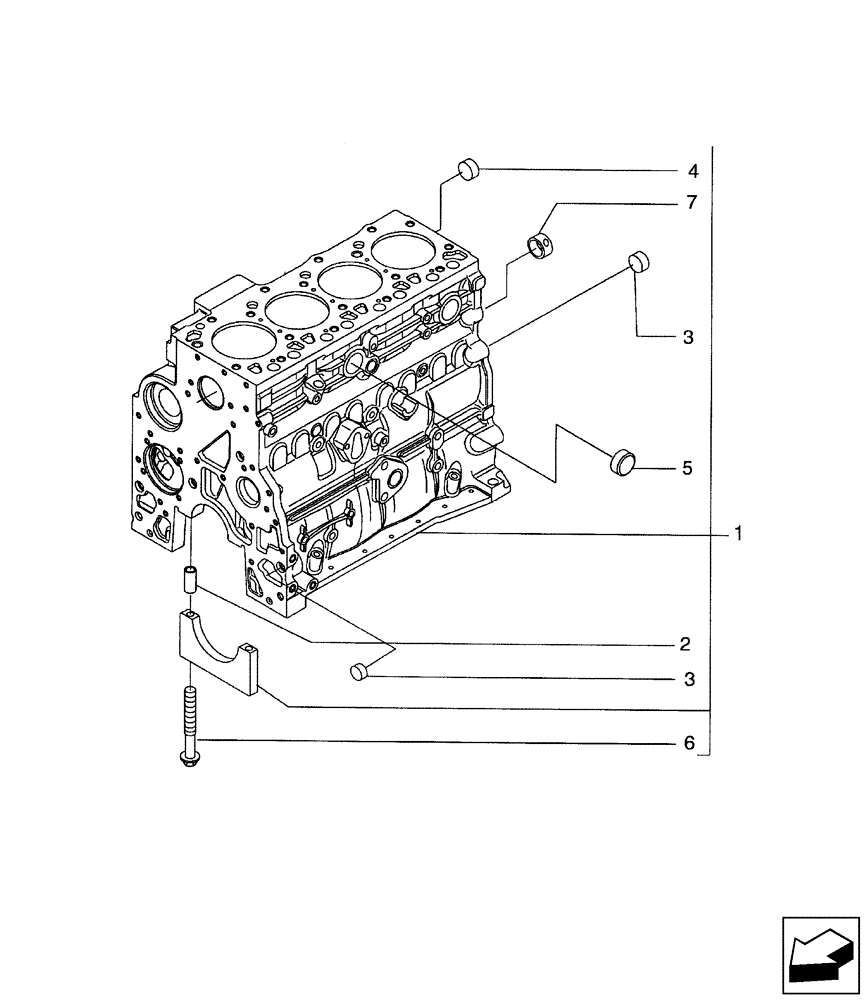

Схема запчастей Case 580SM - (10.001.02[01]) - CYLINDER BLOCK (10) - ENGINE
5
4
3
3
6
2
7
1

Артикул

Название

Примечание

Количество

84131473

SHORT ENGINE

1шт.

84131473R

REMAN-SHORT ENGINE

580SM, 580SM+ BOTH SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

84131473C

CORE-ENGINE

Return Number

1шт.

1

2830082

CYLINDER BLOCK,4 Cylinders

Incl. Ref 2 - 7, Plus Main Bearing Caps

1шт.

4895919

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

4шт.

4895921

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

Выбрано товаров: 12
