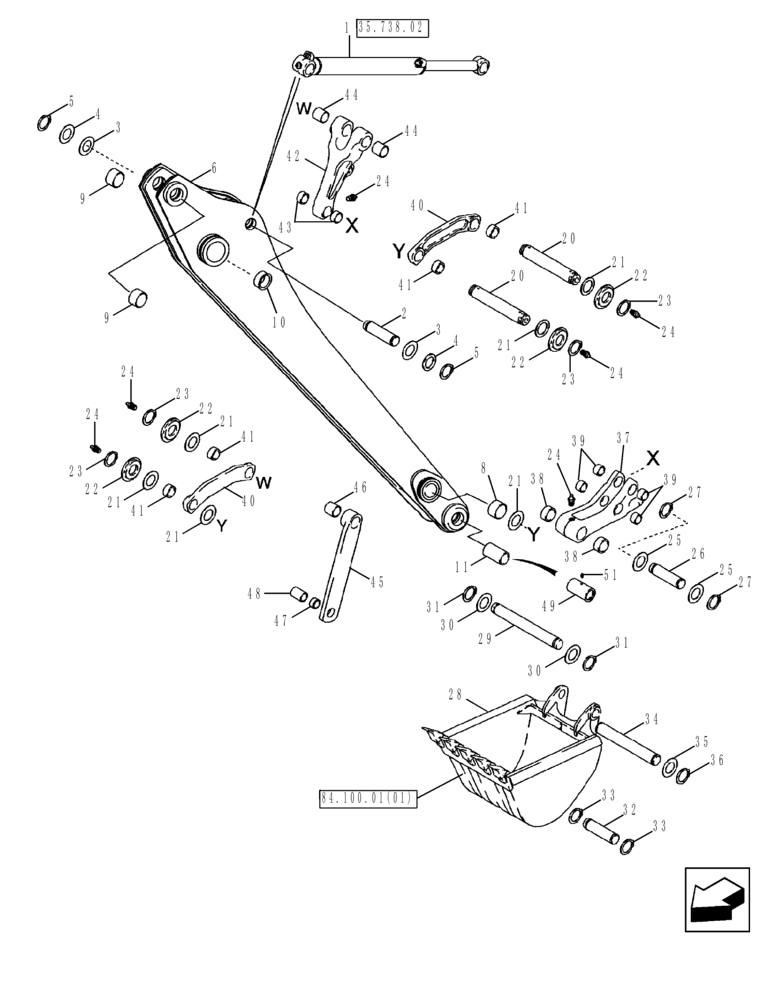

Запчасти Case 580SM (84.114.01[03]) - BACKHOE - DIPPER AND BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

235916A1

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 871.7mm Stroke

80 ID x 872 mm strk; Bucket

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Bucket Cylinder

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

D138022

PIN,50mm OD x 240mm L

1шт.

3

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

4

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

5

103-16175

SNAP RING,#175, Ext

2шт.

403353A1

DIPPER

Incl. Ref 6 - 10; Models Without Hydraulic Backhoe Bucket Coupler; For Models With Hydraulic Backhoe Bucket Coupler

1шт.

6

NSS

NOT SOLD SEPARAT

DIPPER

1шт.

7

D120450

PLUG

Not Illustrated

6шт.

8

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm lg

2шт.

9

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

10

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 ID x 36 mm lg

2шт.

11

87451279

BUSHING,44.57mm ID x 57.15mm OD x 68mm L

44.6 (1-3/4) ID x 57.15 (2-1/4) OD x mm (2-11/16 in) long; Not Included In Assembly; Purchase Separately

2шт.

20

D141142

PIN,50mm OD x 306mm L

306 mm lg; Guide Link

2шт.

21

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

22

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

4шт.

23

103-16175

SNAP RING,#175, Ext

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

25

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

26

D146288

PIN,44.45mm OD x 167mm L

Dump Link Coupler

1шт.

27

103-16175

SNAP RING,#175, Ext

2шт.

28

REF

INSTRUCTION

Bucket

1шт.

29

D149298

PIN,44.38mm OD x 331mm L

Bucket

1шт.

30

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

31

103-16175

SNAP RING,#175, Ext

2шт.

32

D37614

PIN,38mm Od x 246mm L

(12 inch) Universal Bucket Only

1шт.

33

D25279

SNAP RING,M35, Int

2шт.

33

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

34

D150619

PIN,44.29mm OD x 372.6mm L

All Buckets Except 12 Inch (305 mm) Buckets

1шт.

35

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

36

103-16175

SNAP RING,#175, Ext

2шт.

281185A1

COUPLING

Bucket; Incl. Ref 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

COUPLER Quick

1шт.

38

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm lg

2шт.

39

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

29 mm lg

4шт.

40

348706A1

LINK ASSY.

Bucket Guide; Incl. Ref 41

2шт.

41

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

42

400398A1

LINK ASSY.

Bucket Dump; Incl. Ref 43, 44

1шт.

43

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

2шт.

44

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

45

244790A1

LINK ASSY.

Bucket Dump; Incl. Ref 46, 47

2шт.

46

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

1шт.

47

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1шт.

48

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

40 (1-9/16) ID x 47 (1-27/32) OD x 71 mm (2-51/64 in) long

1шт.

49

87451280

SPACER,54.3mm ID x 67mm OD x 138mm L

67 (2-5/8) OD x 138 mm (5-7/16 in) long

1шт.

51

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
