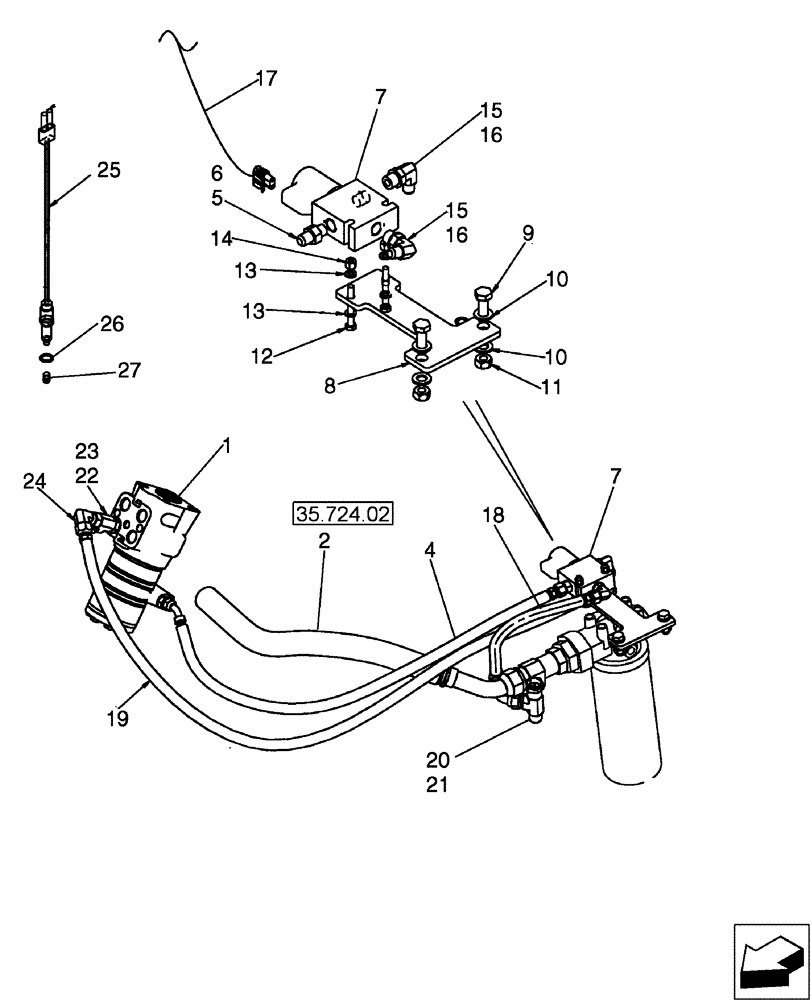

Запчасти Case 580SM (41.200.01[02]) - HYDRAULICS - STEERING (COMFORT STEER) (VARIABLE VOLUME PUMP MODELS) (580SM+) (41) - STEERING

REF

INSTRUCTION

For Comfort Steer Electrical

1шт.

1

87579286

STEERING VALVE

Steering Control Valve Pump, Dual Speed Steering; Includes 87454545, 396592A1, 87619415; For Attaching Fittings and Hoses

1шт.

87454545

SEAL KIT

Includes (2) Seals, (8) O-Rings, Instructions

1шт.

396592A1

KIT

Anti-Cavitation; Includes (2) Balls, (4) Springs, (2) Retainers

1шт.

87619415

SET OF SCREWS

Bolt Kit Includes (7) Capscrews

1шт.

2

87659613

HOSE ASSY.,25mm ID x 720mm L, SAE 100R6

Return Tube, Filter to Tank; For Fitting at Filter

1шт.

4

87560508

HOSE ASSY.

1580 mm (62-7/32 in) long Hose; Pilot; Dual Speed

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

87382811

SOLENOID VALVE

Two-Position Three-Way; Includes 87348571, 329483A1, 87613159, 87613161

1шт.

87348571

NUT,Hex, 1/2" - 20, RH

Hex, 1/2-20 NF; Coil

1шт.

329483A1

SEAL KIT

1шт.

87613159

SOLENOID VALVE

Cartridge

1шт.

87613161

SOLENOID,12V, 1.36A

Coil

1шт.

8

87610318

MOUNTING PLATE

Solenoid Bracket, Painted Tan

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

832-10406

NUT,M6 x 1, Cl 8

2шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 16

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87663365

WIRE HARNESS

Comfort Steer Jumper

1шт.

18

87671893

HYDRAULIC HOSE

315 mm (12-3/8 in) long; Dual Speed To Tank

1шт.

19

87701254

HYDRAULIC HOSE

1580 mm (62-7/32 in) long; Dual Speed Steering Pilot

1шт.

20

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

87578910

SENSOR

Position; Models with Standard Transmission Only; Attaches to Chassis Option Harness; Incl. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING

1шт.

27

NSS

NOT SOLD SEPARAT

PIN

1шт.
