Запчасти Case 580SM (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

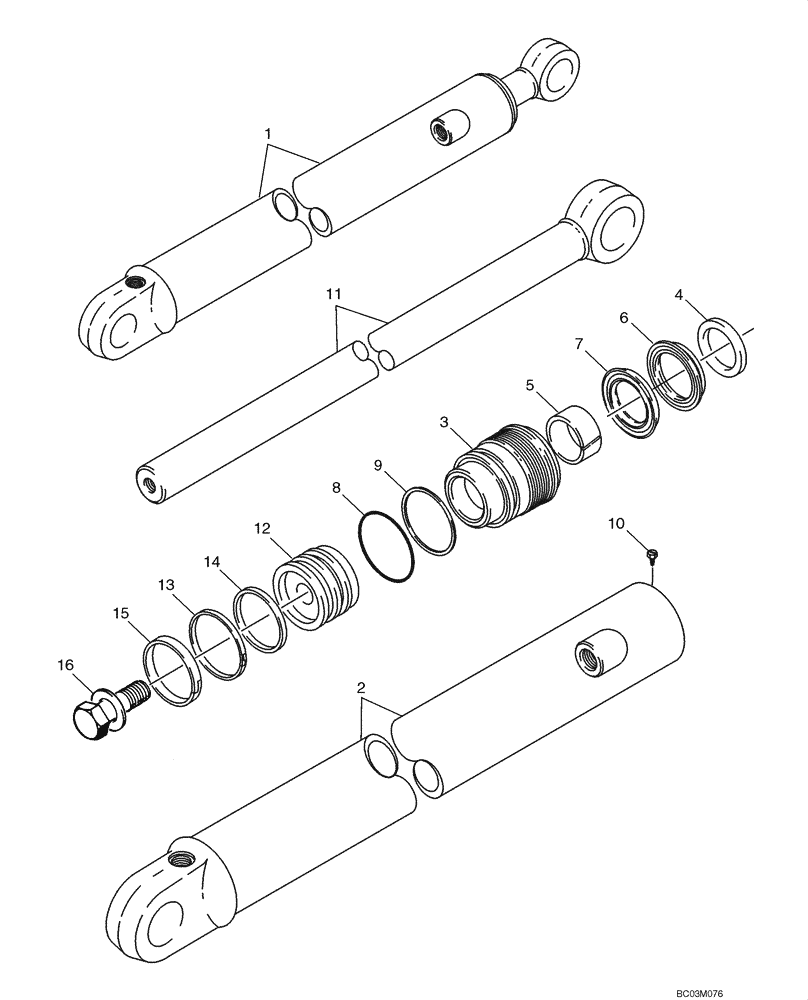

Схема запчастей Case 580SM - (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS
4
1
10
9
11
7
16
8
2
15
13
3
6
12
14
5

Артикул

Название

Примечание

Количество

1

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 ID x 1068 mm strk, Incl Ref 2 - 16

1шт.

1

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

1

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

2

1340970C1

TUBE,76.1mm Bore Dia

Tube

1шт.

3

297281A1

GLAND

1шт.

1543267C1

SEAL KIT

Incl Ref 4 - 9, 13 - 15

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

5

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer; Incl Ref 6, 7; Not Serviced Separately; Order 1543267C1 Seal Kit

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 1543267C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 1543267C1 Seal Kit

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Backup

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

11

1980296C1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

12

G107277

PISTON

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2.5 in, Incl. Washer

1шт.

Выбрано товаров: 20
