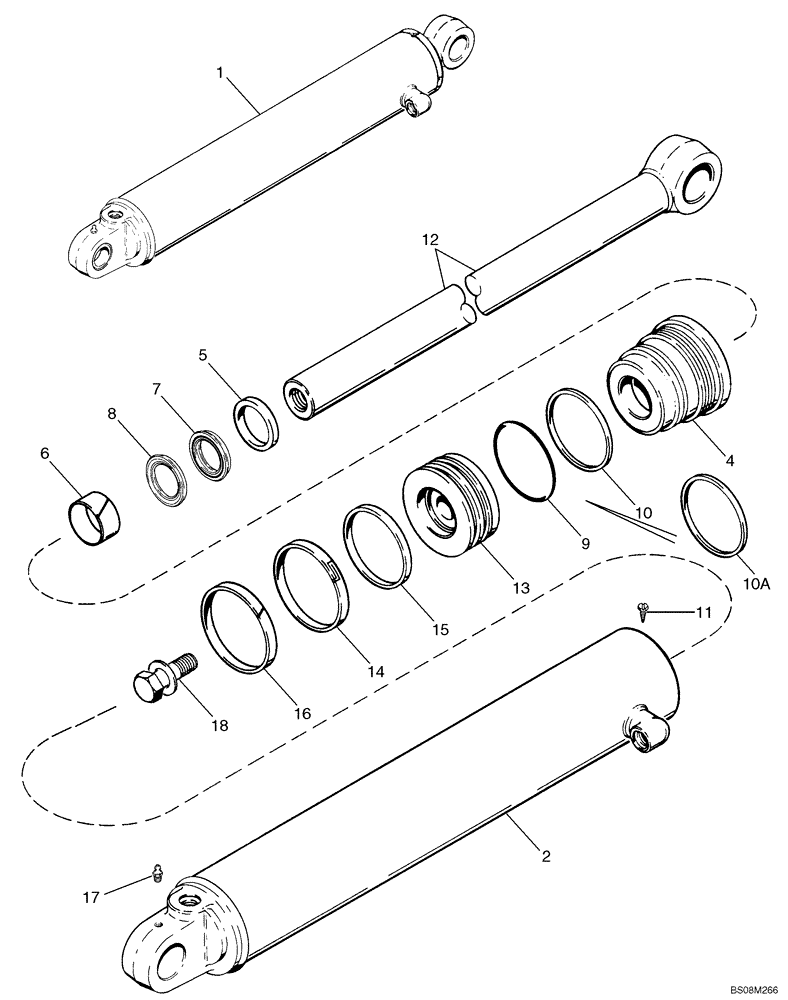

Запчасти Case 580SM (35.732.02[02]) - CYLINDER ASSY - BACKHOE STABILIZER (580SM+) (35) - HYDRAULIC SYSTEMS

1

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Backhoe Stabilizer; RH; 127 ID x 519 mm strk; Incl Ref 2 - 18

1шт.

1

177256A1R

REMAN-HYD CYLINDER

580SM+ Series 3, w/ Tier 3 Engines

1шт.

1

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

Backhoe Stabilizer; LH; 127 ID x 519 mm strk; Incl Ref 2 - 18

1шт.

1

177257A1R

REMAN-HYD CYLINDER

580SM+, w/Tier 3 Engine

1шт.

1

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

177258A1

HYD TUBE,126.77mm Bore Dia

RH

1шт.

2

177259A1

HYD TUBE,126.77mm Bore Dia

LH

1шт.

4

1542918C3

GLAND

1шт.

1543289C2

SEAL KIT

Incl Ref 5 - 10, 14 - 16; Plus An Additional Seal Not Used In This Application; No Longer Used, For Service Order 84154317

1шт.

84154317

SEAL KIT

Incl. 5 - 8, 10A, 14 - 16

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Rod and Buffer; Incl. Ref 7, 8; Not Serviced Separately; Order 1543289C2 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 1543289C2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 1543289C2 Seal Kit

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

No Longer Used, Replaced With Ref. 10A, 87615485

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

No Longer Used, Replaced with Ref. 10A, 87615485

1шт.

10a

87615485

SEAL,118.72mm ID x 125.88mm OD x 4.85mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

177261A1

ROD

57 mm (2-1/4 in) dia

1шт.

13

G110594

PISTON

1шт.

14

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

15

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

16

G102090

RING,127mm OD, Ext

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1,25 x 3,25 lg; Incl. Washer

1шт.
