(35.726.22[03]) - 87653027 VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS) (580SM+)

Запчасти Case 580SM (35.726.22[03]) - 87653027 VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS

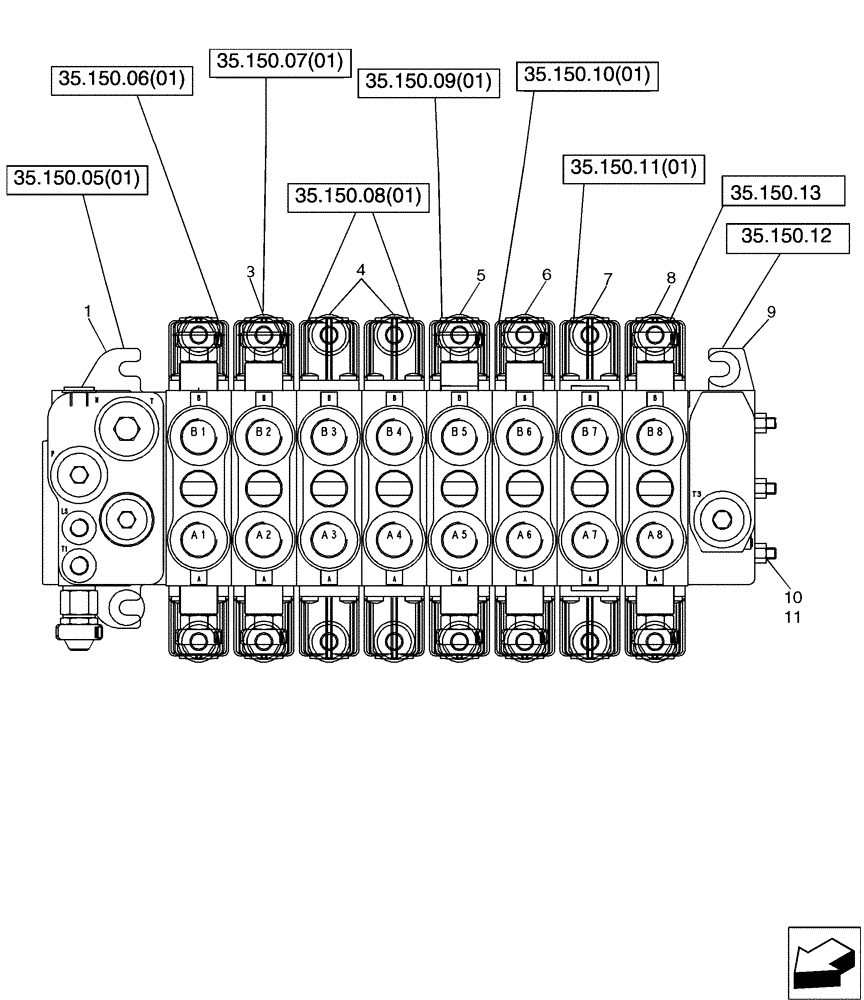

Схема запчастей Case 580SM - (35.726.22[03]) - 87653027 VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS
4
10
35.150.06(02)
35.150.09(02)
7
35.150.11(01)
6
1
35.150.10(02)
5
9
3
35.150.08(01)
35.150.05(01)
8
35.150.13
35.150.12
11
35.150.07(01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87653027

HYDRAULIC VALVE

Backhoe Control; 8 Spool; Rexroth No. 08 278 469; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 11

1шт.

1

87750976

HYD VALVE SECTION

Inlet

1шт.

2

87751023

HYD VALVE SECTION

Swing

1шт.

3

87751020

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer

2шт.

5

87718995

HYD VALVE SECTION

Dipper

1шт.

6

87751046

HYD VALVE SECTION

Bucket

1шт.

7

87750987

HYD VALVE SECTION

Extendable Dipper

1шт.

8

85826342

HYD VALVE SECTION

Auxiliary

1шт.

9

87751047

HYD VALVE SECTION

Outlet

1шт.

10

87447477

SET OF PARTS

BOLT Tie

3шт.

11

280136

NUT,3/8"-16, G8

3шт.
