(35.726.21[02]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS)

Запчасти Case 580SM (35.726.21[02]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

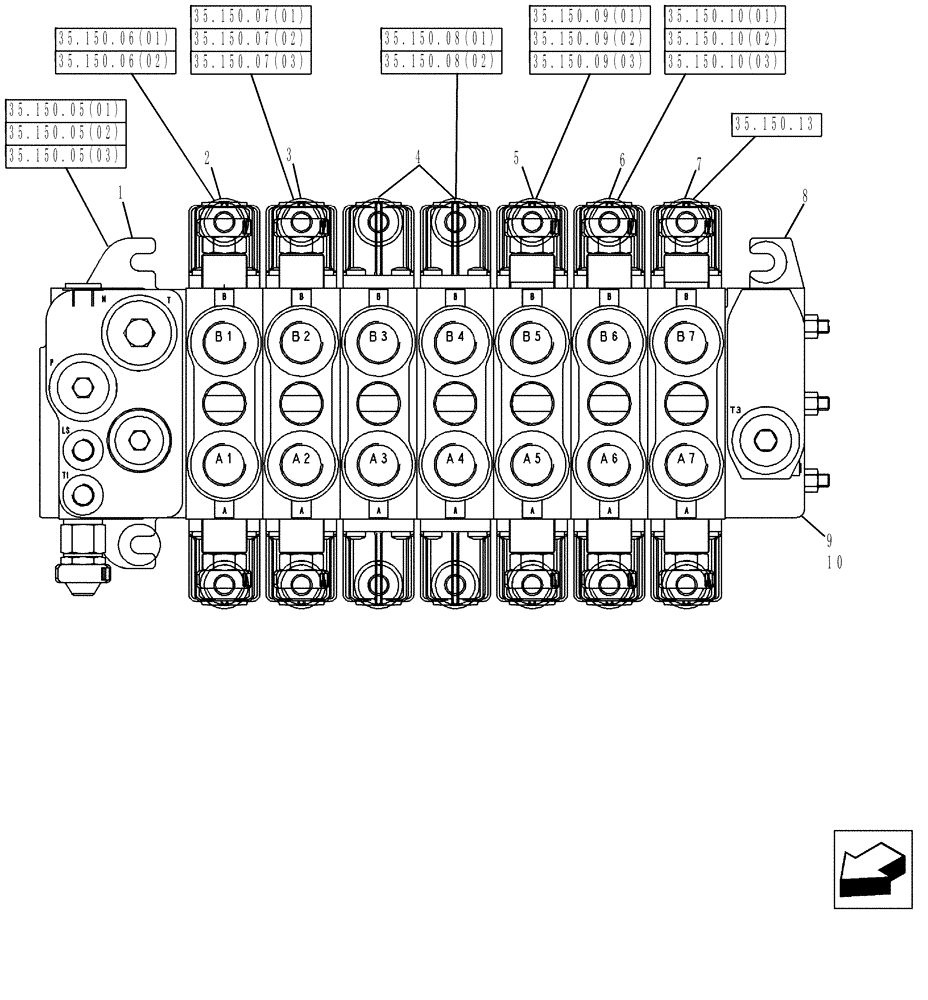

Схема запчастей Case 580SM - (35.726.21[02]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
35.150.13
5
10
1
9
3
35.150.09(01)
35.150.09(02)
35.150.09(03)
35.150.08(01)
35.150.08(02)
35.150.07(03)
35.150.06(01)
35.150.06(02)
35.150.05(01)
35.150.05(02)
35.150.05(03)
35.150.10(01)
35.150.10(02)
35.150.10(03)
7
35.150.07(01)
2
8
4
6
35.150.07(02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87577348

CONTROL VALVE

Backhoe 7 Spool; Rexroth No. 08 403 272; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 10

1шт.

1

87441495

HYD VALVE SECTION

Inlet; With Orifice Threaded In LS Cavity

1шт.

2

85826339

HYD VALVE SECTION

Swing

1шт.

3

85826337

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer

2шт.

5

85826338

HYD VALVE SECTION

Dipper

1шт.

6

85826365

HYD VALVE SECTION

Bucket

1шт.

7

85826342

HYD VALVE SECTION

Auxiliary

1шт.

8

NSS

NOT SOLD SEPARAT

OUTLET Section

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT Tie

3шт.

10

NSS

NOT SOLD SEPARAT

NUT

3шт.
