(35.726.20[02]) - 87653026 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+)

Запчасти Case 580SM (35.726.20[02]) - 87653026 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS

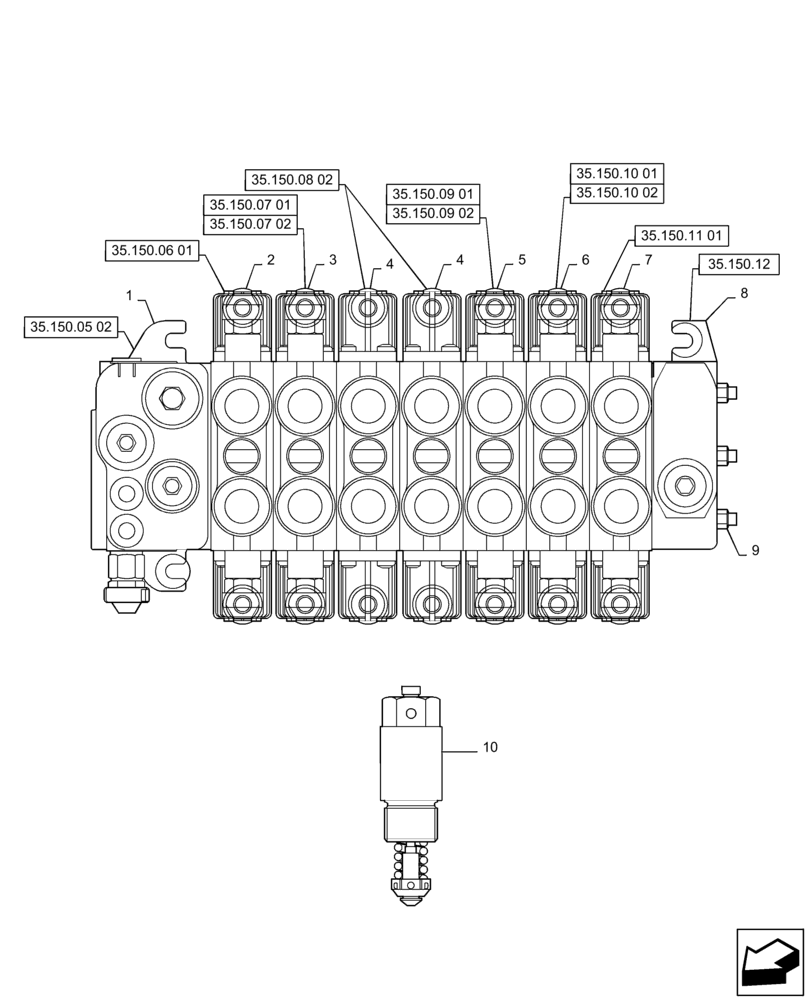

Схема запчастей Case 580SM - (35.726.20[02]) - 87653026 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS
35.150.06 01
7
9
35.150.08 02
35.150.07 01
35.150.12
35.150.05 02
3
8
35.150.09 01
35.150.11 01
35.150.10 01
4
6
4
35.150.09 02
35.150.07 02
1
35.150.10 02
5
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87653026

HYDRAULIC VALVE

Backhoe Control; 7 Spool; Rexroth No. 08 278 500 or 08403718; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 10

1шт.

1

87750976

HYD VALVE SECTION

Inlet

1шт.

2

87751023

HYD VALVE SECTION

Swing

1шт.

3

87751020

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer

2шт.

5

87718995

HYD VALVE SECTION

Dipper

1шт.

6

87751046

HYD VALVE SECTION

Bucket

1шт.

7

87750987

HYD VALVE SECTION

Extendable Dipper

1шт.

8

87751047

HYD VALVE SECTION

Outlet

1шт.

9

85811959

KIT

Tie Rod and Nuts

3шт.

Order O-rings Between Sections as Required

1шт.

10

280136

NUT,3/8"-16, G8

3шт.

10

87752848

VALVE PRESSURE RELIE

Pilot Operated

1шт.

Use in Port A & B in Bucket & Dipper Sections. Use in Port B in Boom Section.

1шт.
