(35.726.20[01]) - 84138949 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+)

Запчасти Case 580SM (35.726.20[01]) - 84138949 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS

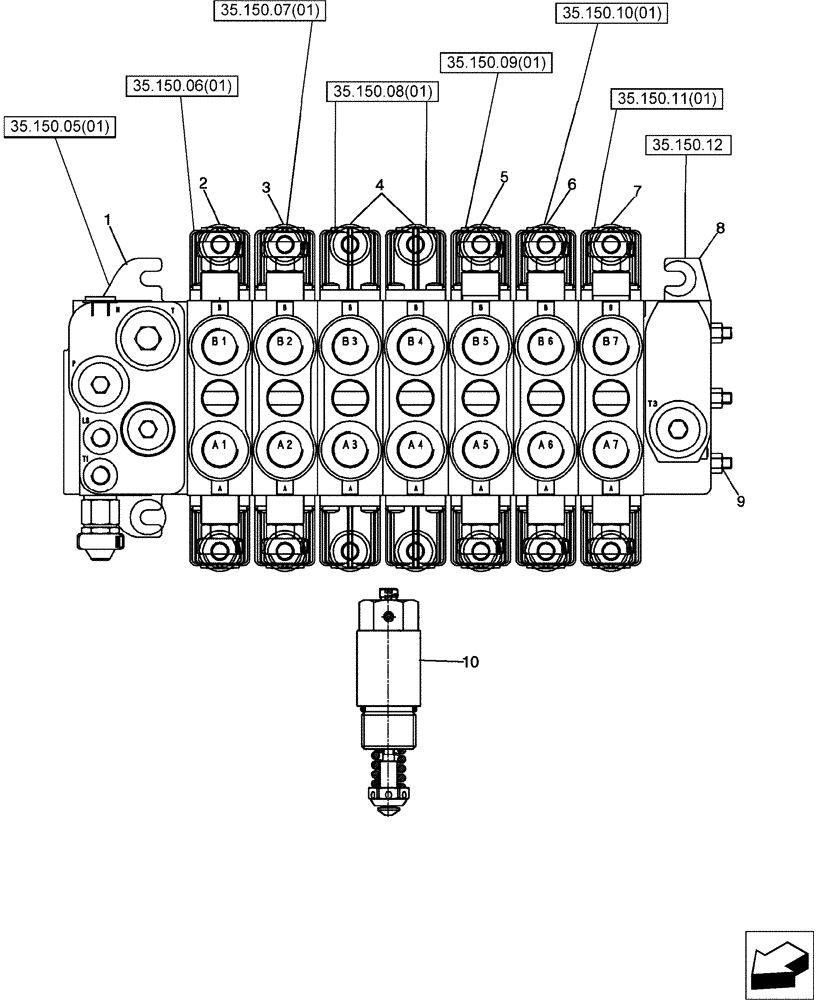

Схема запчастей Case 580SM - (35.726.20[01]) - 84138949 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS
8
10
2
7
5
35.150.08(01)
35.150.06(01)
35.150.07(01)
35.150.11(01)
35.150.10(01)
35.150.05(01)
35.150.12
35.150.09(01)
6
9
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84138949

HYDRAULIC VALVE

Backhoe Control; 7 Spool; Rexroth No. 08 279 027 or 08403718; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 10

1шт.

1

84157942

HYD VALVE SECTION

Inlet

1шт.

2

87751023

HYD VALVE SECTION

Swing

1шт.

3

84157595

HYD VALVE SECTION

Boom

1шт.

4

84157939

HYD VALVE SECTION

Stabilizer

2шт.

5

84157593

HYD VALVE SECTION

Dipper

1шт.

6

84157596

HYD VALVE SECTION

Bucket

1шт.

7

87750987

HYD VALVE SECTION

Extendable Dipper

1шт.

8

87751047

HYD VALVE SECTION

Outlet

1шт.

9

85811959

KIT

Tie Rods & Nuts Only

1шт.

Order O-rings Between Sections as Required

1шт.

10

87752848

VALVE PRESSURE RELIE

Option (Service Only) Pilot Operated; Use In Port A & B in Bucket & Dipper Sections. Use in Port B in Boom Section

1шт.
