(35.726.09[04]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS)

Запчасти Case 580SM (35.726.09[04]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

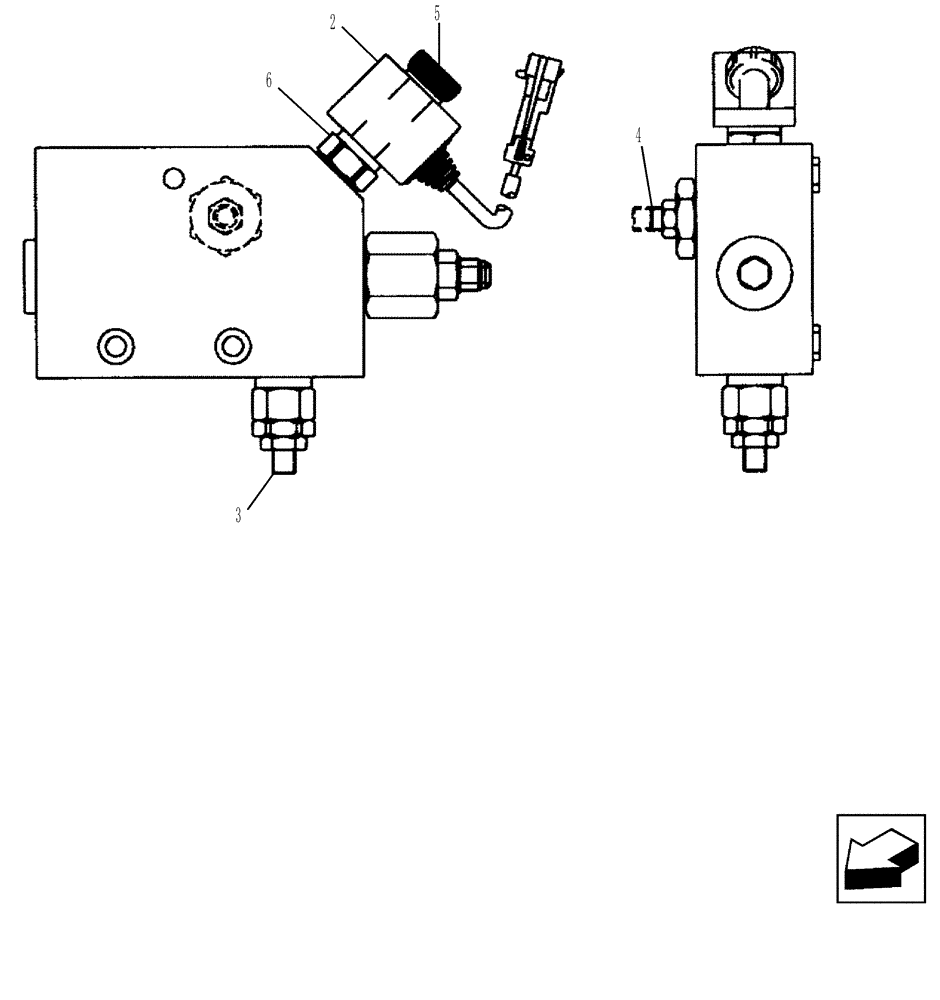

Схема запчастей Case 580SM - (35.726.09[04]) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
5
4
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87448993

HYDRAULIC VALVE

Auxiliary Uni-Directional; Incl. 1 - 6

1шт.

1

9970181

SEAL KIT

Miscellaneous Gaskets; Not Illustrated

1шт.

2

87421832

COIL

Solenoid With Connector

1шт.

3

9970178

VALVE PRESSURE RELIE

1шт.

4

9970179

REGULATOR

Voltage Assy

1шт.

5

9970384

RING NUT

Ring

1шт.

6

9970180

SOLENOID VALVE

1шт.
