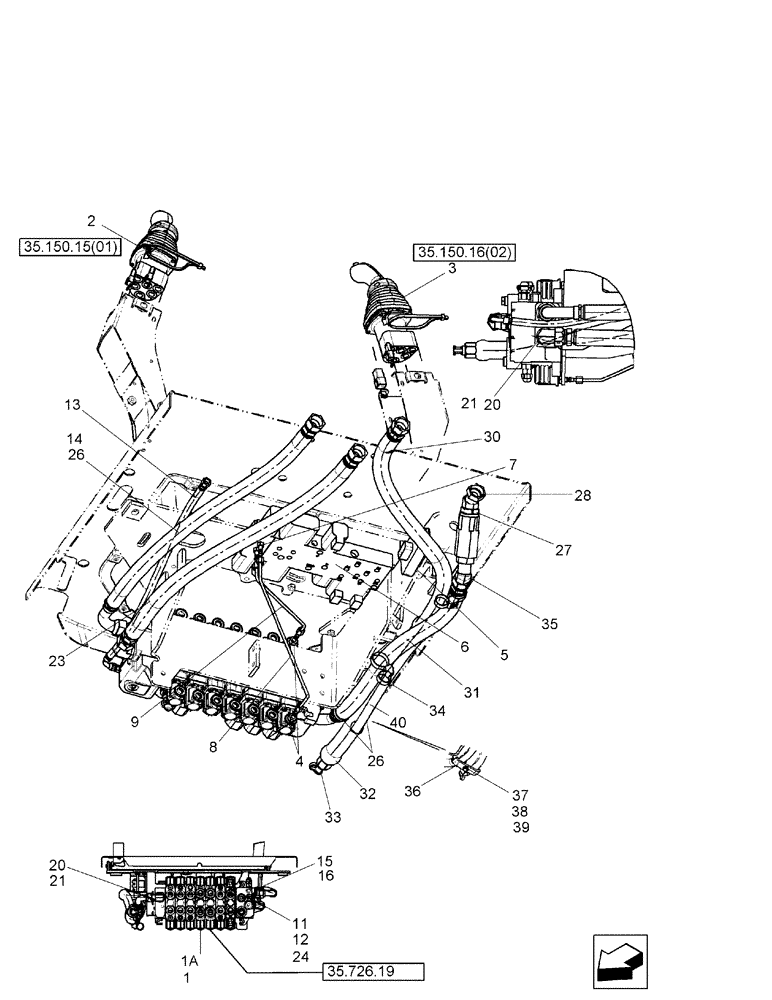

Запчасти Case 580SM (35.726.05[02]) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (7 SPOOL, W/ EXT DIPPER, W/ AUX HYDS) (580SM+) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Seven Spool Valve With Extendable Dipper; With Auxiliary Hydraulics; With Auto-Up; With Uni-Directional

1шт.

1

87653026

HYDRAULIC VALVE

Backhoe, 7 Spool; Rexroth No. 08 278 500 or 08403718; Check Data Plate On Valve For Part Number; No Longer Available, For Service Order 84138949 Valve, Ref 1A

1шт.

1a

84138949

HYDRAULIC VALVE

Backhoe, 7 Spool; Rexroth No. 08 279 027 or 08403718; Check Data Plate On Valve For Part Number

1шт.

2

87685953

JOYSTICK

LH; With Horn and Uni-Directional Buttons

1шт.

3

87685957

JOYSTICK

RH: With RH EXT Dipper and OTD

1шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

87746674

MODULE

Pilot Control Power Supply, Serial Range: -NAC532000

1шт.

5

84203219

MODULE

, Start Serial: NAC532001

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

6

85827471

HYDRAULIC VALVE

Pressure Reducing, 3 Spool

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87437633

HYD TUBE

To Lower Extendable Dipper Port

1шт.

B Port White/Blue to E

1шт.

9

87437635

HYD TUBE

To Upper Extendable Dipper Port

1шт.

A Port White to F

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

87443052

HYDRAULIC HOSE

715 mm; Load Sense, Serial Range: Backhoe-Hammer

1шт.

14

87628835

HYDRAULIC HOSE,25.4mm ID x 1025mm L, SAE 100R1AT

1025 mm; Backhoe Valve Return

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

87476198

HYDRAULIC HOSE,25mm ID x 1050mm L, SAE 100R17

1050 mm; Backhoe Valve To Loader Valve

1шт.

24

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

26

87751962

HYDRAULIC HOSE,25mm ID x 825mm L, SAE 100R16

825 mm; Backhoe Valve To Check Valve To Filter; UniDirectional Models

1шт.

27

84127220

CHECK VALVE

Replaces 87490193

1шт.

28

87752015

FITTING

Includes 237-6008 O-Ring

1шт.

30

84189344

HYDRAULIC HOSE

1270 mm; Attenuator used in production 04/28/09

1шт.

31

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

2шт.

32

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

33

H434163

DUST CAP

1шт.

34

305342A1

STRAP,450mm L

2-3шт.

35

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

1шт.

36

87420673

HOSE CLAMP

2шт.

37

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

38

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

39

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

40

276739A1

LOOM

used in production from 04/28/09

1шт.
