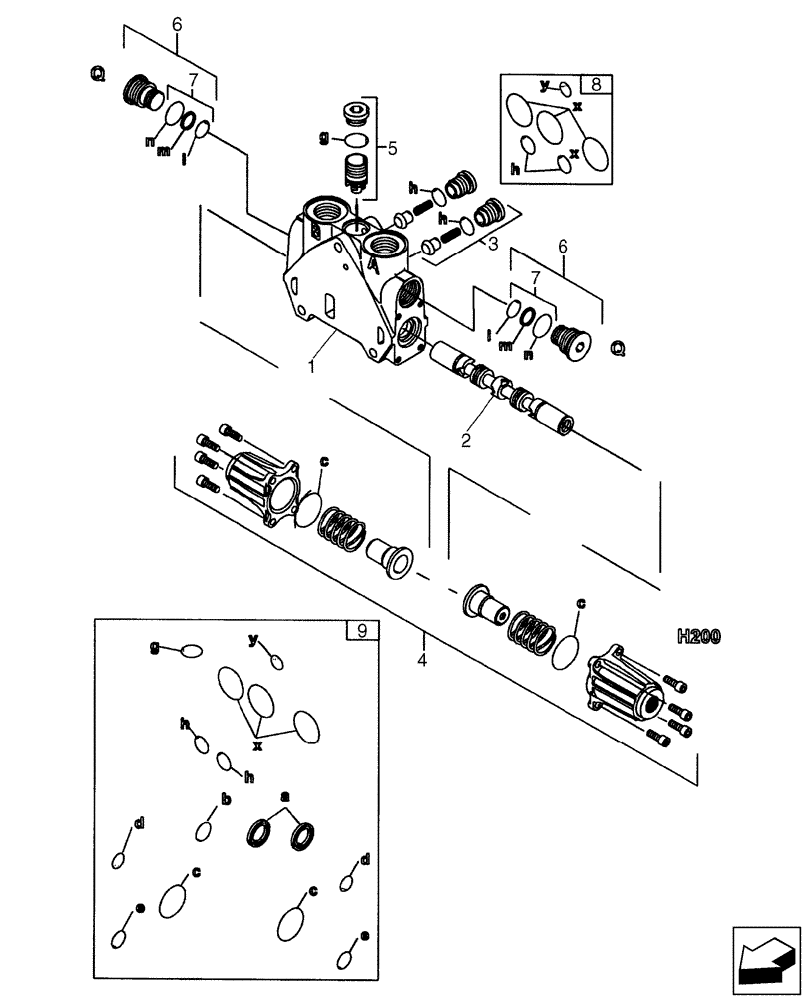

Запчасти Case 580SM (35.150.04) - VALVE SECTION - OPTIONS, AUXILIARY HYDRAULICS, 2 OR 3 SPOOL VALVES (VARIABLE VOLUME PUMP MODELS) (580SM+) (35) - HYDRAULIC SYSTEMS

87751147

HYD VALVE SECTION

Option, Auxiliary; Incl. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

4

87754423

SERVICE KIT

Cap, Hydraulic Operation; Component Parts Not Serviced Separately

1шт.

5

85826345

KIT,Pressure Compensator

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

6

85811937

PLUG

Some Component Parts Not Serviced Separately; Serviceable Includes 85811933, Ref 7 Kit

2шт.

7

85811933

SEAL KIT,Secondary Valve

Includes (2) O-Rings, (1) Thrust Ring; Component Parts Not Serviced Separately

1шт.

8

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Includes (14) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.
